Deutz TCD 2015 - Installing Rear Cover

TCD 2015
Crankcase
W 03-09-01
© 06/2006 8180-001
2/4
6

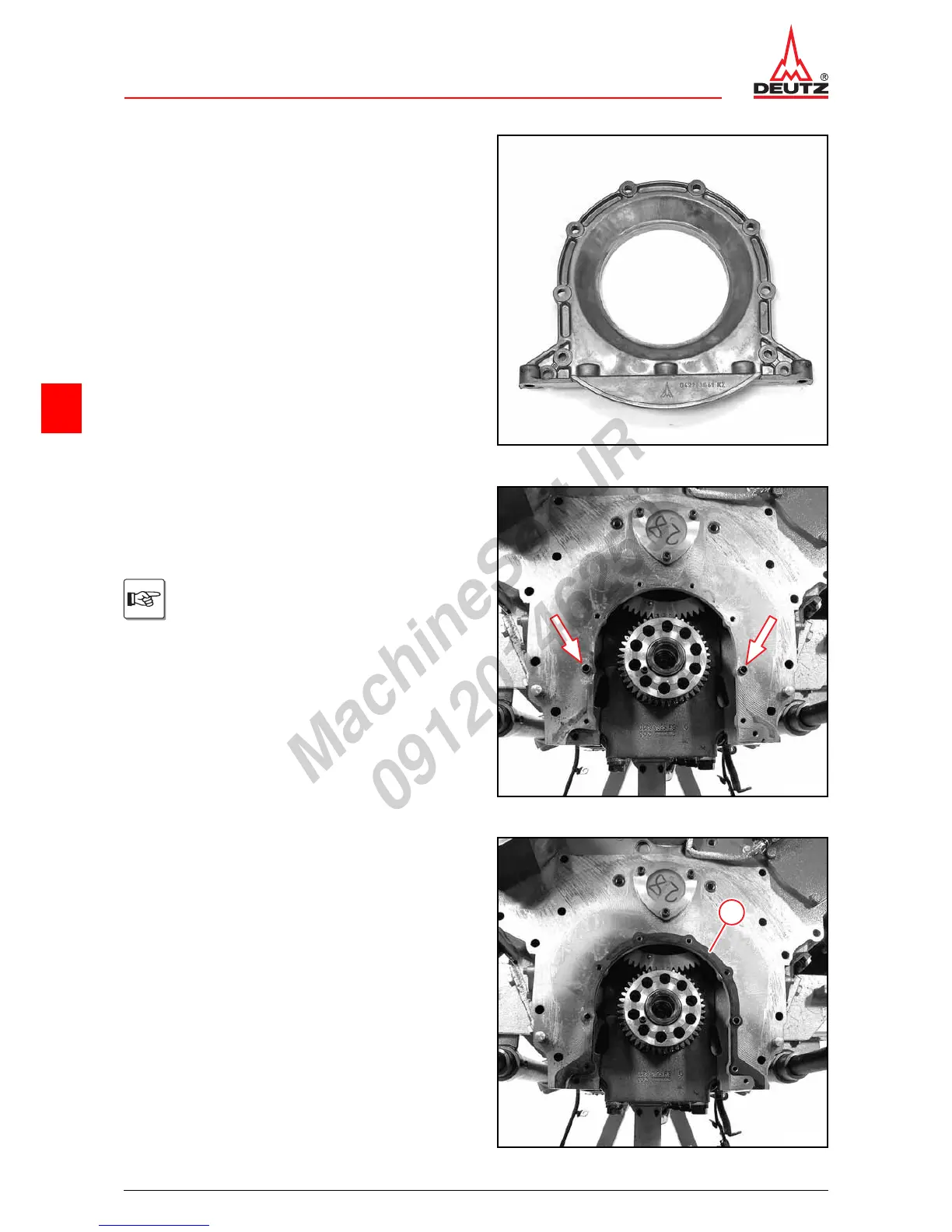

z Visually inspect the components.
© 40685-0
Installing rear cover
z Clean sealing surfaces.
z Make sure the clamping bushings (arrows) are in
place.
The slots in the clamping bushings must
face downwards.
© 40686-0
z Insert new seal (1).
1
© 40687-0
