TCD 2015
Engine control
W 04-05-05
© 06/2006 8187-001
20/24
6
z Mount pad thrust bearing (2).
z Lightly oil screws (1).
z Tighten screws (1).
1
2
© 40989-0

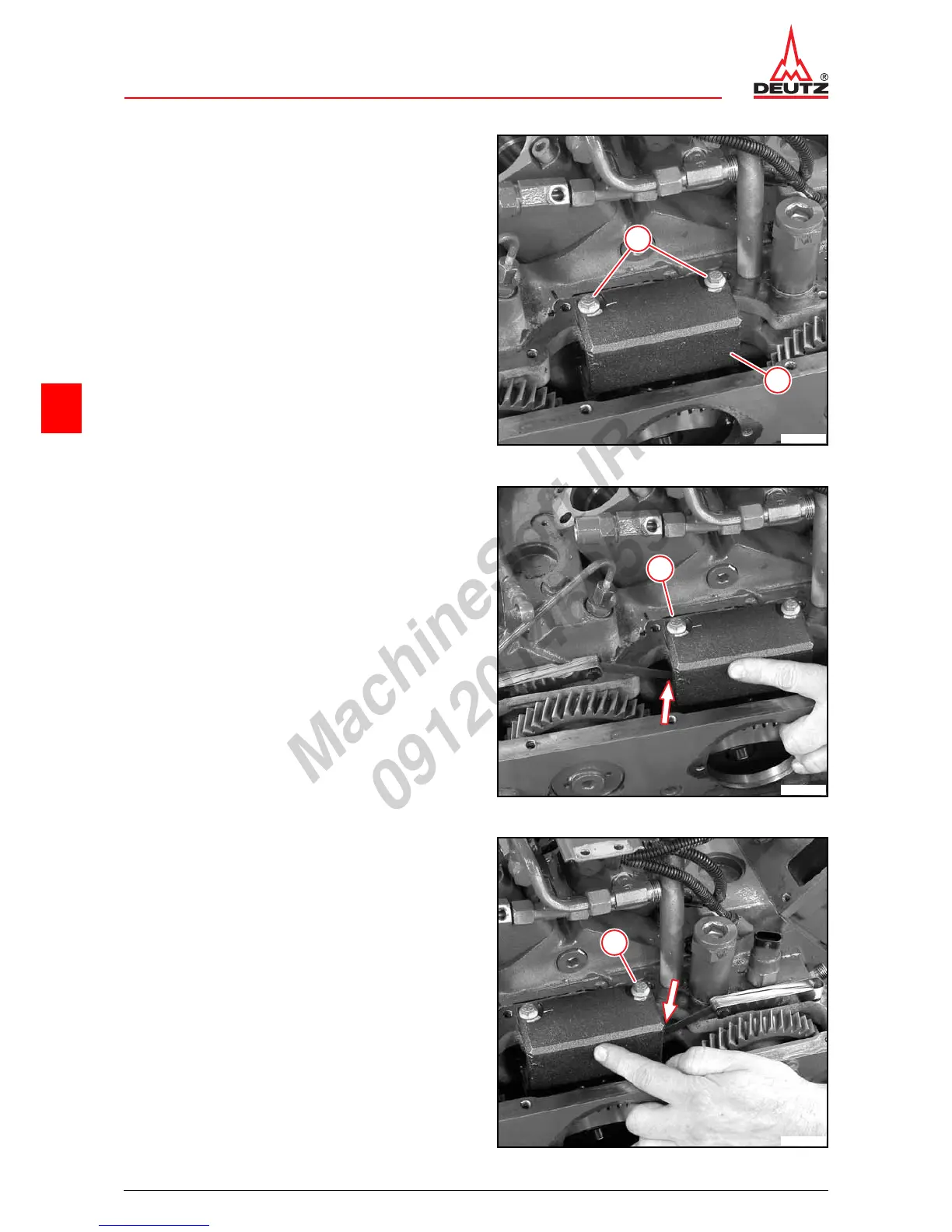

Checking and setting axial backlash of the
injection pump camshaft
z Insert feeler gauge blade between gear wheel of the
injection pump camshaft and the pad thrust
bearing (arrow).
z Press the pad thrust bearing onto the feeler gauge
blade.
z Fasten screw (1).
z Check axial backlash.
P04 43
1
© 40512-0
z Insert feeler gauge blade between gear wheel of the
injection pump camshaft and the pad thrust
bearing (arrow).
z Press the pad thrust bearing onto the feeler gauge
blade.
z Fasten screw (1).
z Check axial backlash.
P04 43
1
© 40513-0
