© 06/2006 8224-001
1/6
TCD 2015 Railway
Fuel system
W 07-10-06
6
Removing and installing fuel pipes
Commercial available tools
Special tools:
– Plugs/caps . . . . . . . . . . . . . . . . . 170160
Attention!
Pay attention to utmost cleanliness when
working on the fuel system.
Remove residue paint and particles of dirt
before removing.
Clean the respective affected parts care-
fully. Blow damp areas dry with compres-
sed air.
Observe the safety regulations and natio-
nal specifications for handling fuels.
Close all connections immediately after
opening with new, clean plugs/caps.
Do not remove plugs/caps until immedia-
tely before assembling.
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.
Ensure that the cables are connected pro-
perly.
Removing fuel pipes

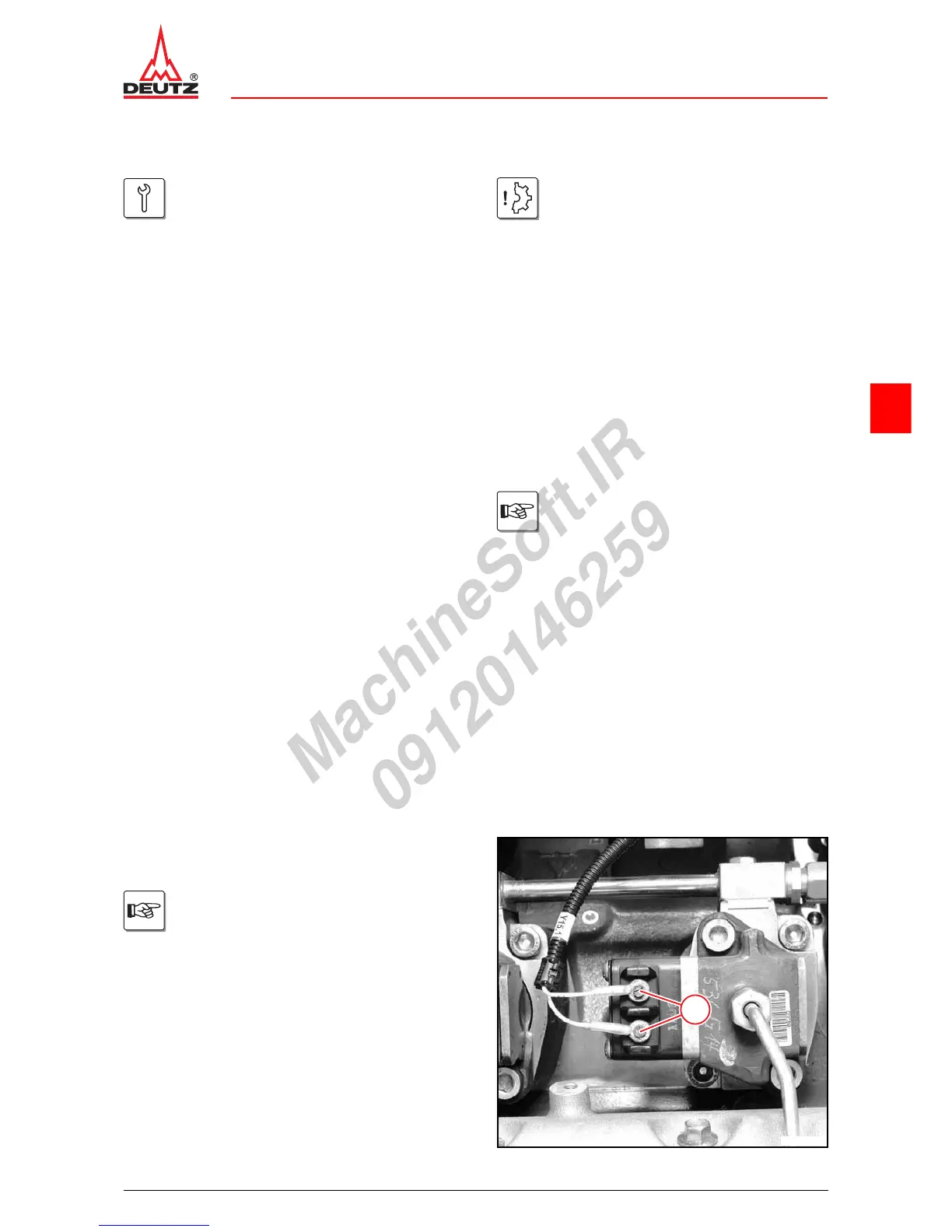

z Loosen screws (1).
z Remove cables.
Mark assignment of cables/connections
before removing.
1
© 42107-2
