Deutz TCD 2015 - Assembling Genset Support

TCD 2015
Crankcase
W 03-08-03
© 06/2006 8179-001
4/10
6

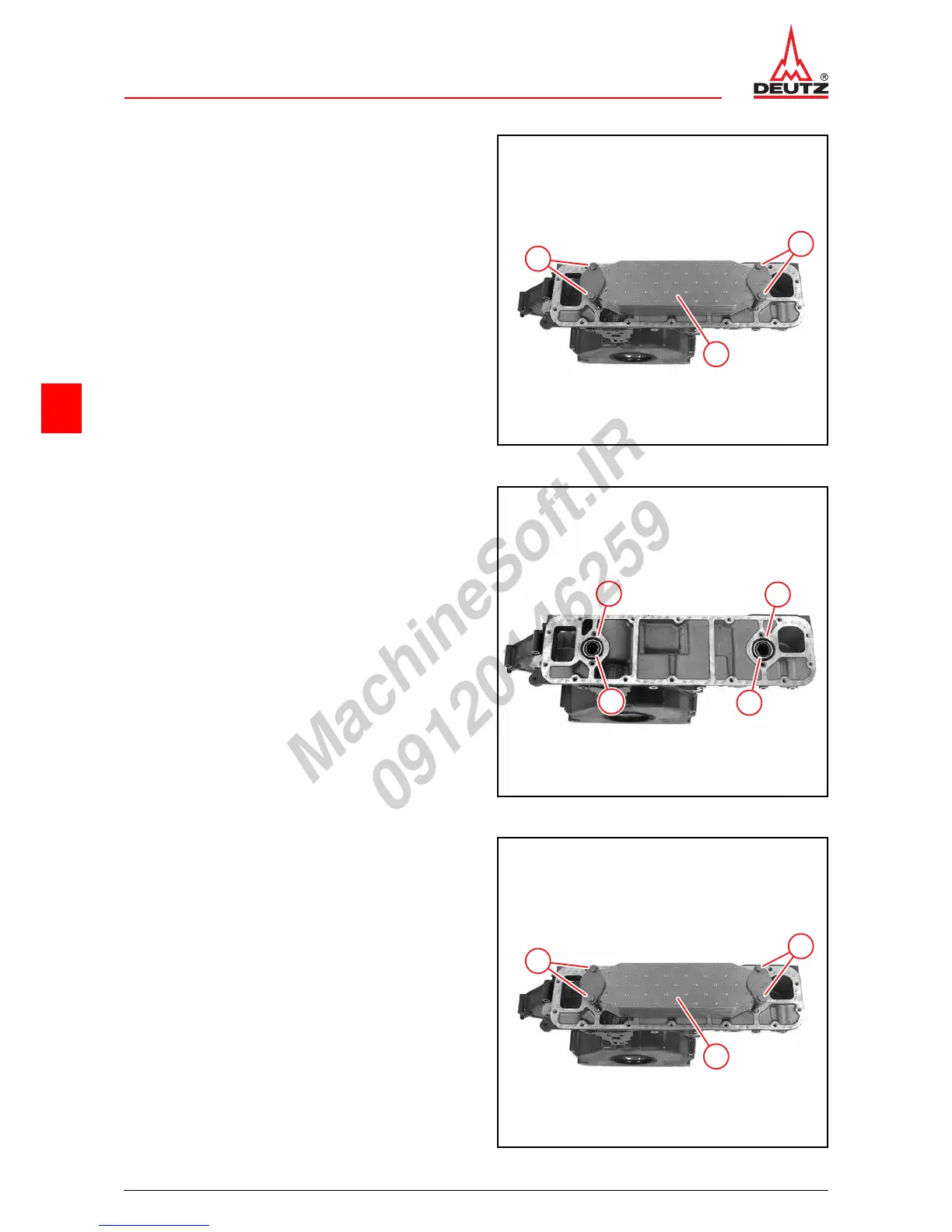

z Unscrew screws (1).
z Remove oil cooler (2).
z Remove O-rings.
1
2
1
© 40563-0
Assembling genset support
z Clean sealing surfaces.
z Insert new O-rings (1).
z Insert new O-rings (2).
1
1
2
2
© 40564-0
z Mount oil cooler (2).
z Tighten screws (1).
 A08 051
1
2
1
© 40563-0
