TCD 2015
Cylinder head
W 01-04-09
6
Checking piston overhang
8190
Commercial available tools:
– Magnetic measuring stand
Special tools:
– Dial gauge. . . . . . . . . . . . . . . . . . 100400
– Measuring instrument with
measuring plate . . . . . . . . . . . . . 100850
– W 01-04-04
– W 04-06-03

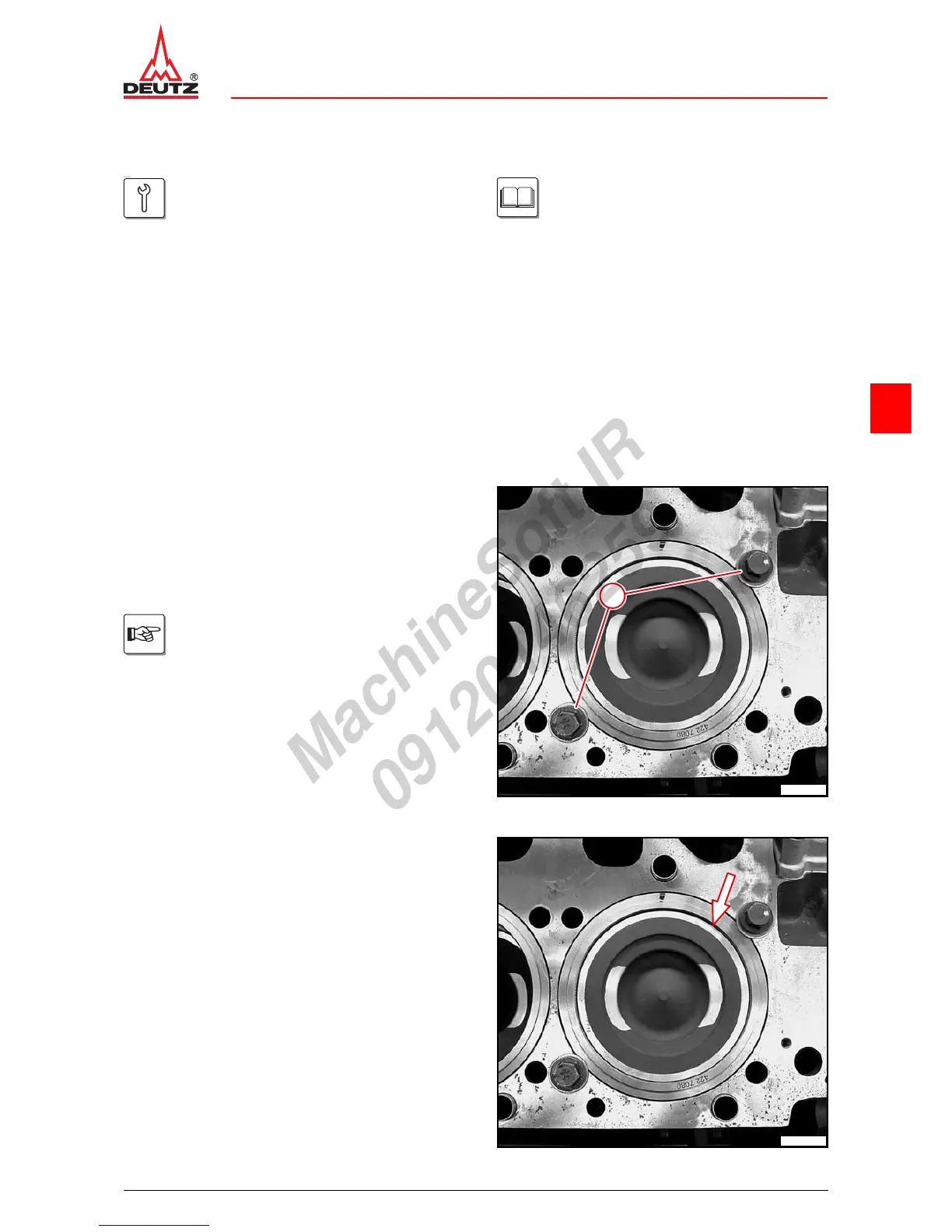

Checking piston overhang
z Remove cylinder head.
W 01-04-04
z Insert screws and washers (1) diagonally opposed.
z Tighten screws until they touch the cylinder liner.
Washers:
Maximum thickness 4 mm
Screw length:
M16 x 90
1
© 45424-0
z Attach turning gear.
W 04-06-03
z Turn the crankshaft until the respective piston is just
in front of the top dead centre (arrow).
© 45763-0
