TCD 2015
Cylinder head
W 01-04-09
© 06/2006 8155-001
2/4
6

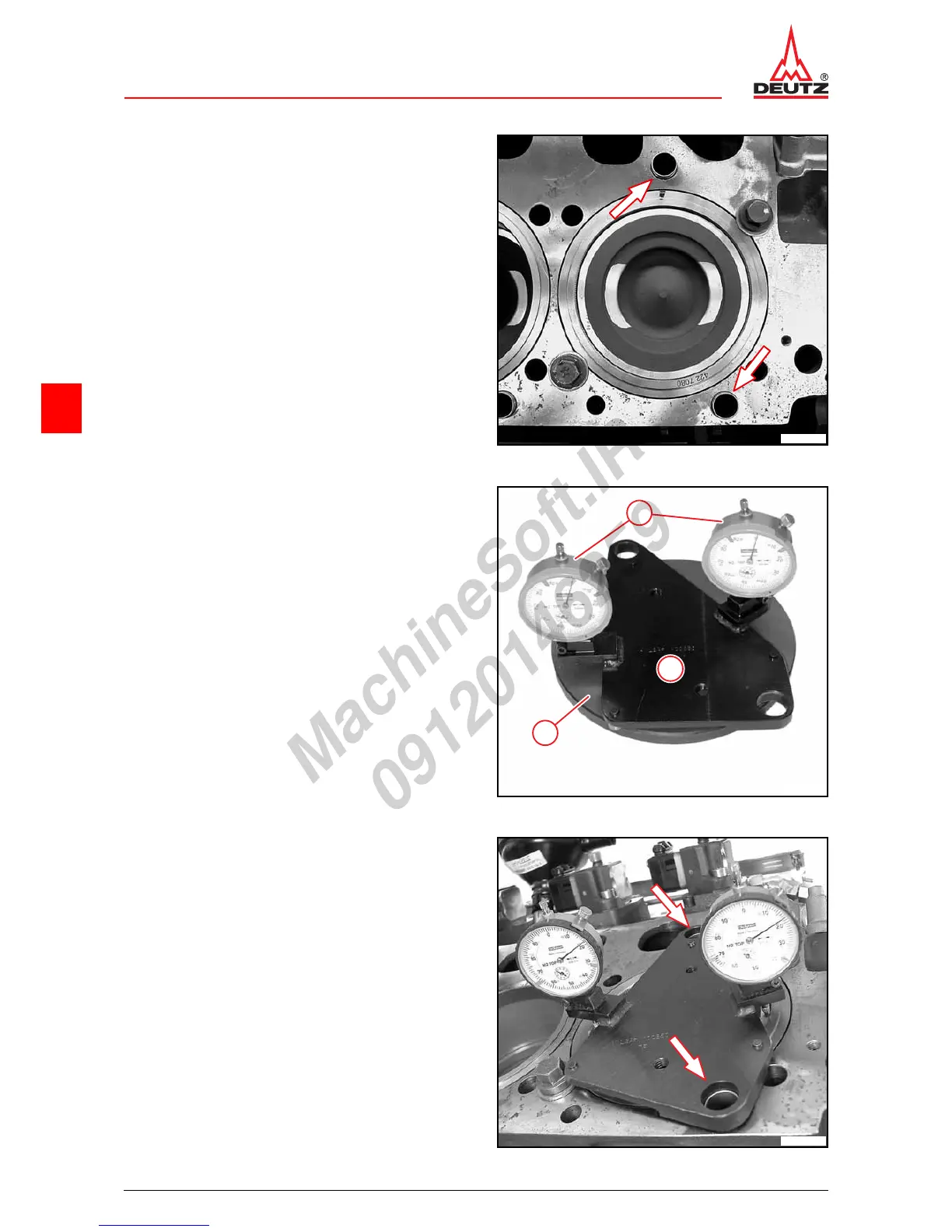

z Make sure the clamping bushings (arrows) are in
place.
© 45766-0
z Place measuring instrument (1) on measuring
plate (2).
z Insert dial gauges (3) with pre-tension in the measur-
ing instrument.
z Turn the dial until the pointer points to "0".
3
1
2
© 37242-0
z Place the measuring instrument over the clamping
bushings (arrows).
z Read off measured value of both dial gauges.
z 1st dial gauge:
– Note measured value, dimension (a).
z 2nd dial gauge:
– Note measured value, dimension (b).
© 45767-0
