© 06/2006 8155-001
3/4
TCD 2015
Cylinder head
W 01-04-09
6

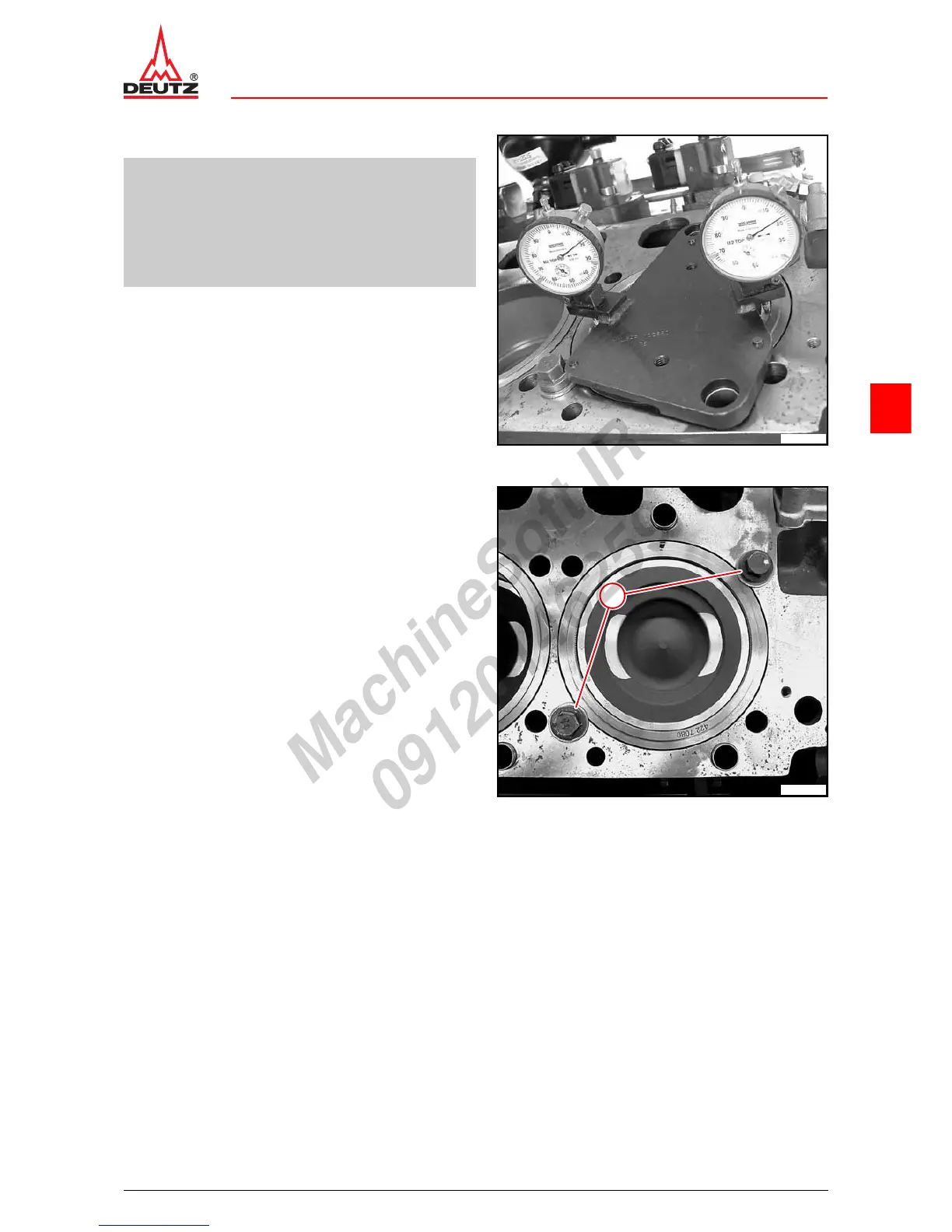

z Form and note average value.
P02 75
P02 76
P02 77
z Remove measuring instrument.
Calculation example
Desired: Dimension x (average value of both dial gauges)
Given: -
Measured: Dimension a (measured value 1st dial gauge)
Dimension b (measured value 2nd dial gauge)
Calculation: Dimension x = (dimension a + dimension b) : 2
(0.39 mm + 0.45 mm) : 2
Result: =0.42mm
© 45767-2
z Unscrew screws (1).
z Remove turning gear.
W 04-06-03
z Install cylinder head.
W 01-04-04
1
© 45424-0
