© 06/2006 8243-001
1/4
TCD 2015
Other components
W 12-08-04
6
Removing and installing hydraulic pump drive
Commercial available tools
Special tools:
– Disassembly tool. . . . . . . . . . . . . 110901
– Fitting compound
DEUTZ AP1908
– Locking agent
DEUTZ DW 59
– W 06-01-06 . . . . . . . . . . . . (A-bank)
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.

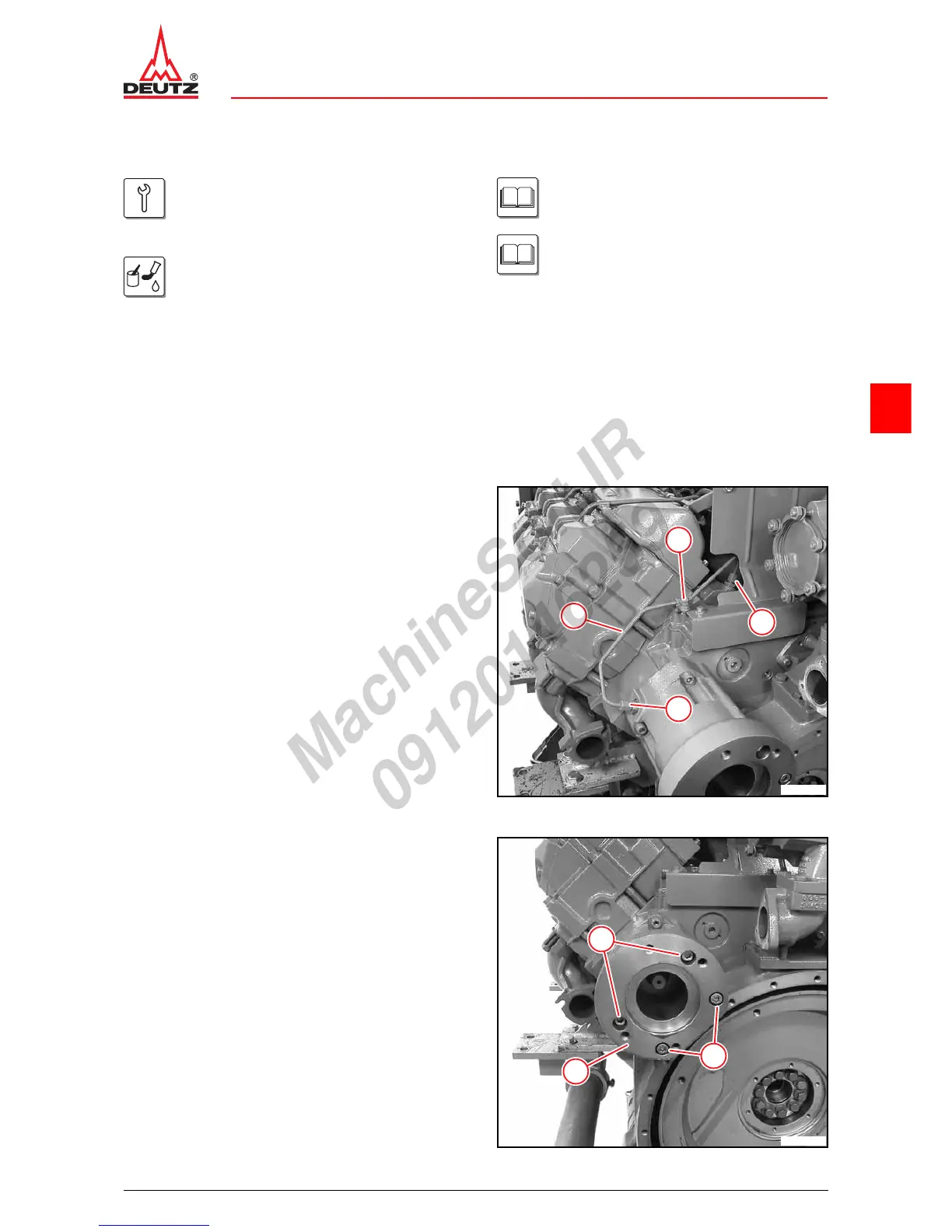

Removing hydraulic pump drive
z Remove exhaust pipe (A-bank).
W 06-01-06
z Unscrew screw (1).
z Unscrew lock nuts (2).
z Remove lubricating oil pipe (3).
1
2
2
3
© 40908-0
z Unscrew screws (1).
z Remove flange housing (2).
1
1
2
© 40909-0
