TCD 2015
Cylinder head
W 01-02-06
© 06/2006 8152-001
2/6
6

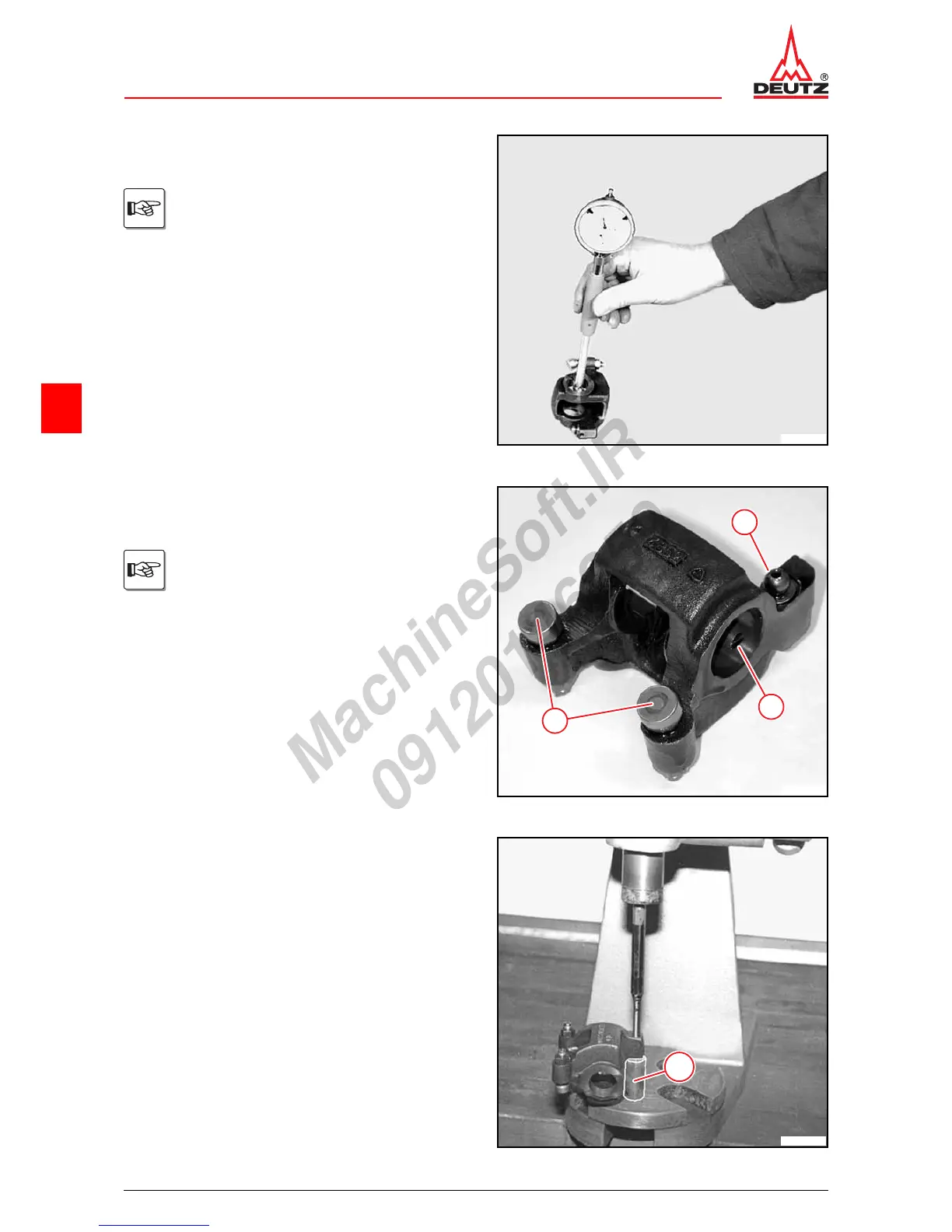

z Measure rocker arm bore.
P01 73
When the wear limit is reached the rocker
arm must be renewed.
© 34825-2
z Visually inspect the components.
z Check ball stud (1) and adjusting screws (2) for
wear.
z Check oil channel (3) for free passage.
The components must be renewed in case
of excessive wear.
2
3
1
© 36749-1
Renewing ball stud
z Place disassembly/assembly tool (1) underneath.
z Press out ball stud.
1
© 34827-3
