TCD 2015
Other components
W 12-06-01
6

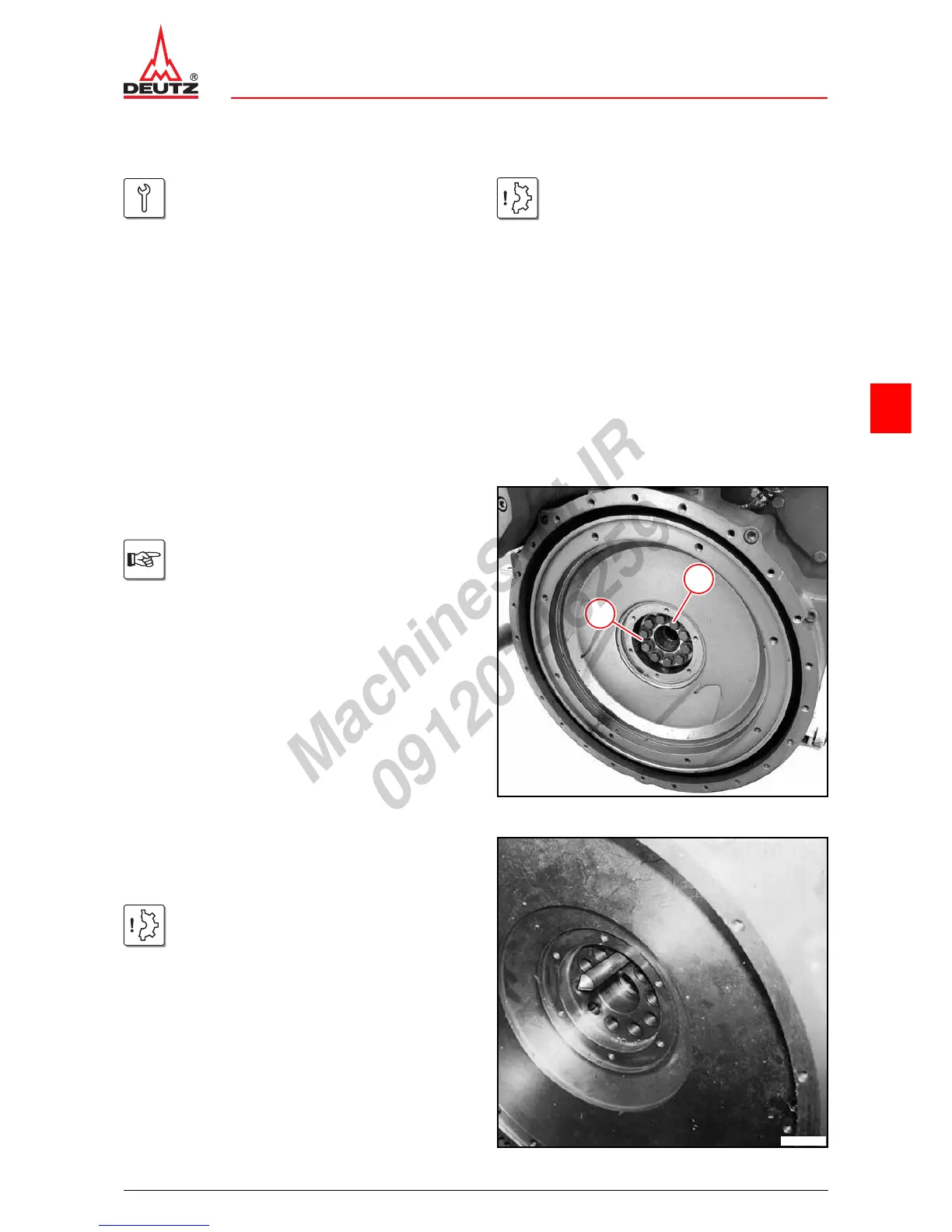

Removing and installing flywheel
Commercial available tools:
– Socket wrench insert . . . . . . . . . . . 8016
– Rotation angle disc . . . . . . . . . . . . . 8190
Special tools:
– Self-made mandrin guide
Attention!
Do not turn the crankshaft without screws/
mandrin guide.
The crankshaft gear wheel is positioned by
screws/mandrin guide.
The position of the crankshaft gear wheel
will change without fixing.
Removing flywheel
z Unscrew all screws (1).
z Remove thrust washer (2).
Block flywheel with suitable tool.
2
1
© 40902_1
z Insert self-made mandrin guide.
z Remove flywheel.
z Remove friction disc.
Attention!
Do not turn the crankshaft without screws/
mandrin guide.
The crankshaft gear wheel is positioned by
screws/mandrin guide.
The position of the crankshaft gear wheel
will change without fixing.
© 34985-2
