Deutz TCD 2015 - Installing the Fuel Injector

© 06/2006 8219-001
5/6
TCD 2015
Fuel system
W 07-07-01
6

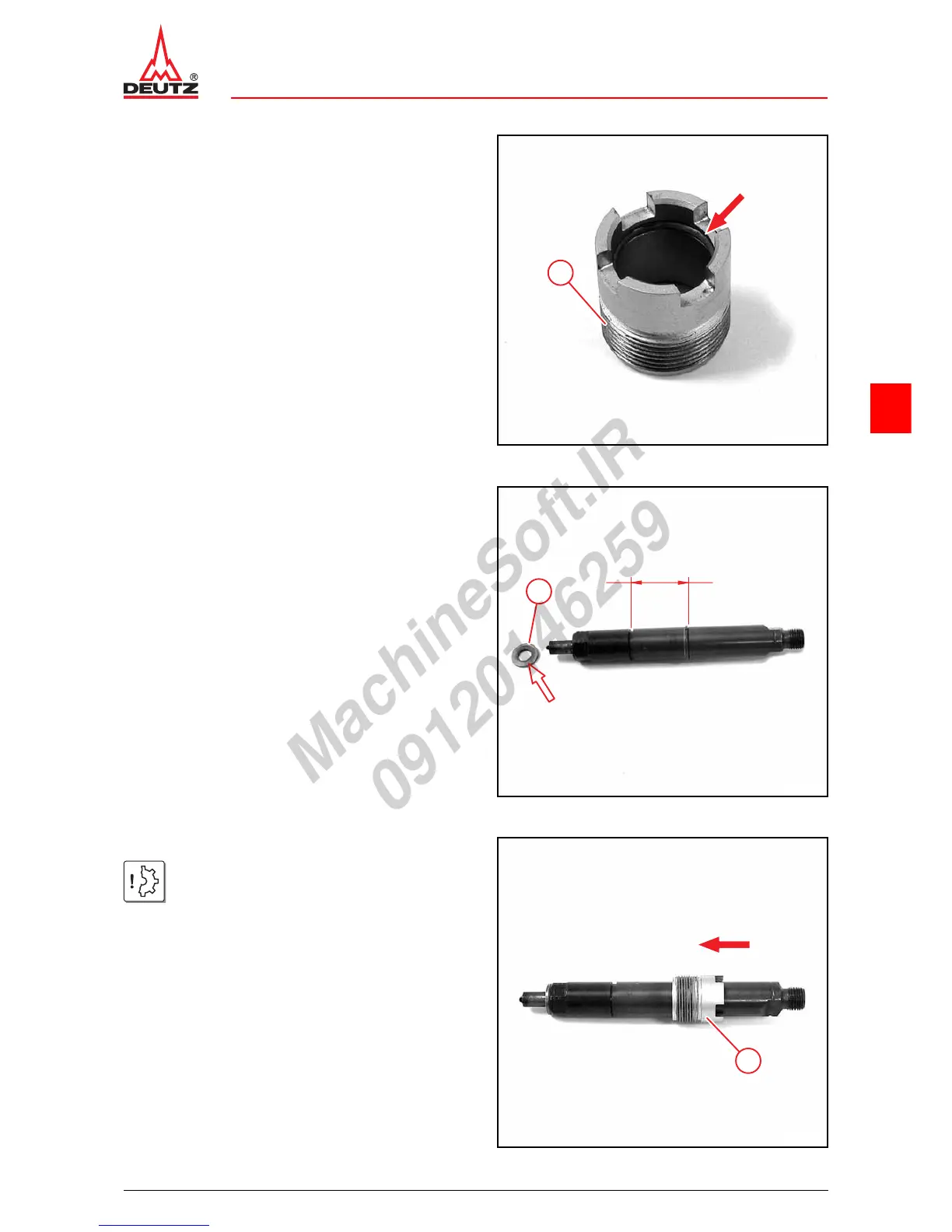

Installing the fuel injector
z Insert new O-ring (arrow).
z Coat the thread (1) with fitting compound.
1
© 40818-0
z Coat the nozzle holder shaft in the (X) area with fit-
ting compound.
z Coat the lay-on surface of the sealing ring (arrow)
with fitting compound.
z Mount new sealing ring (1) on fuel injector.
1
X
© 40819-0
z Push the union screw (1) in the direction of the arrow.
Attention!
Do not damage the O-ring!
1
© 40820-0
