Deutz TCD 2015 - Removing and Installing the Piston Cooling Nozzle

© 06/2006 8173-001
1/4
TCD 2015
Drive system
W 02-15-01
6
Removing and installing the piston cooling nozzle
Commercial available tools
Special tools:
– Tester . . . . . . . . . . . . . . . . . . . . . 102560
– Dipstick . . . . . . . . . . . . . . . . . . . . 102565
– W 02-09-03

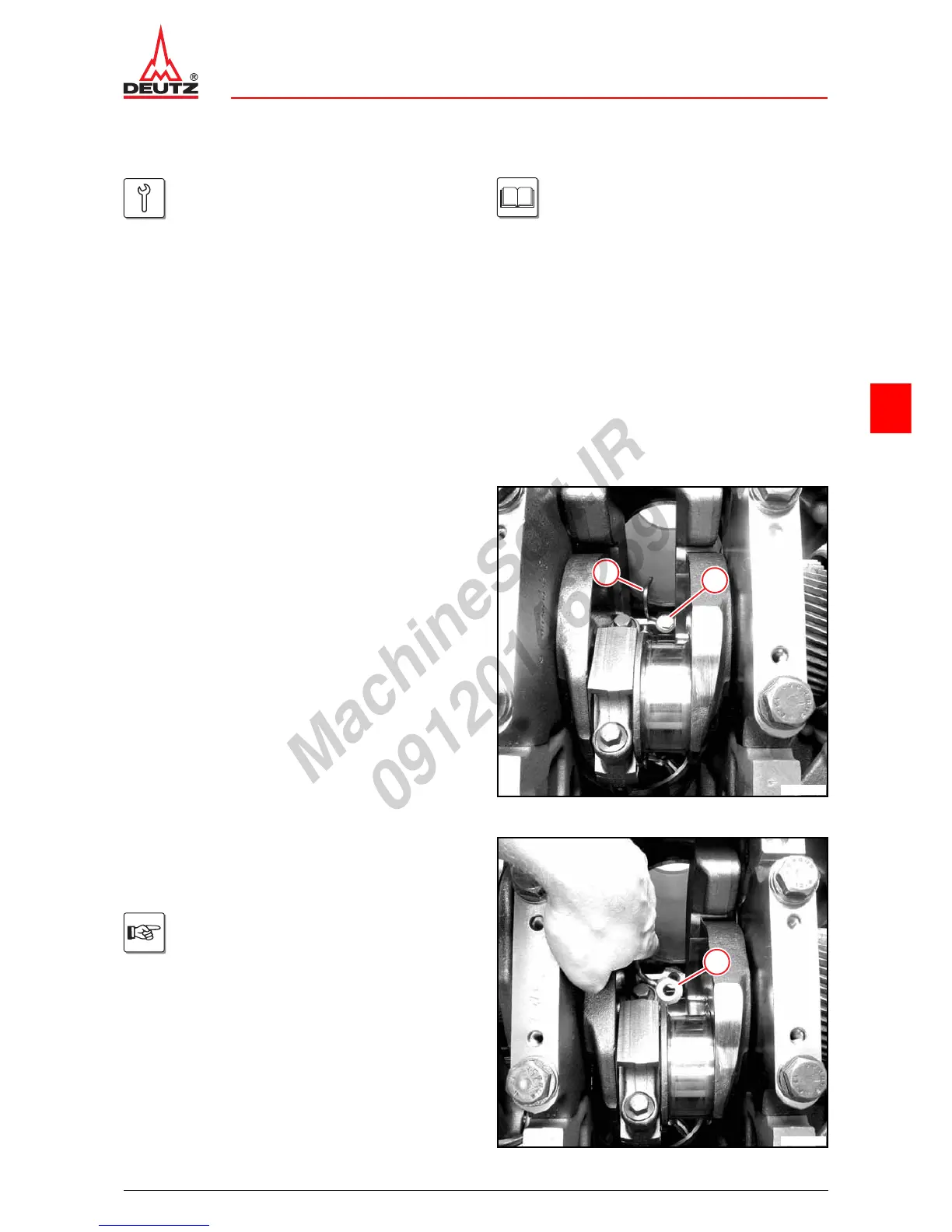

Removing the piston cooling nozzle
z Remove piston and connecting rod.
 W 02-09-03
z Unscrew relief valve (1).
z Remove piston cooling nozzle (2).
1
2
© 42353-1
Installing the piston cooling nozzle
z Mount piston cooling nozzle.
z Screw on the relief valve hand tight.
The flattened side (1) faces the cylinder
liner.
1
© 42354-1
