TCD 2015
Engine control
W 04-04-09
© 06/2006 8185-001
4/6
6

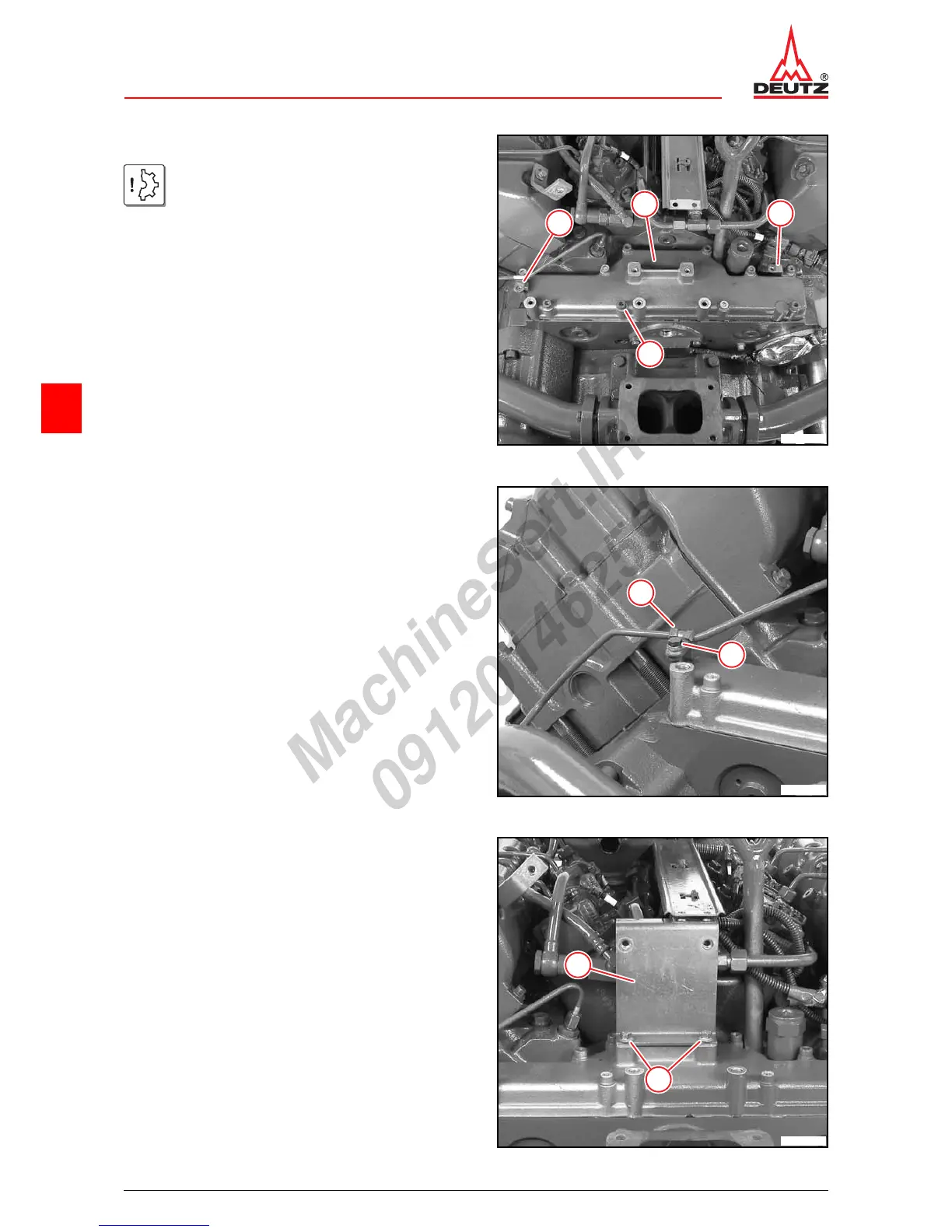

Installing the gearcase cover
z Clean sealing surfaces.
z Apply packing compound evenly to the sealing sur-
face.
z Mount gear case cover (1).
z Mount holder (2).
z Tighten all screws (3) alternately.
A04 020
Attention!
Do not damage the sealing surfaces.
1
2
2
3
© 40708-0
z Mount pipe clamp (2).
z Tighten screw (1).
A08 045
1
2
© 40705-0
z Mount holder (2).
z Tighten screws (1).
A12 071
1
2
© 40704-0
