Deutz TCD 2015 - Speed Control; Removing and Installing the Impulse Transmitter (Crankshaft)

© 06/2006 8191-001
1/6
TCD 2015
Speed control
W 05-07-01
6
Removing and installing the impulse transmitter
(crankshaft)
Commercial available tools
Special tools:
– Dial gauge. . . . . . . . . . . . . . . . . . 100400
– Dial gauge adapter . . . . . . . . . . . 101830
– Turn-over gear . . . . . . . . . . . . . . 100300
– Fitting compound
DEUTZ AP1908
– W 04-06-03
Read out error memory of the motor con-
trol timer with SERDIA.

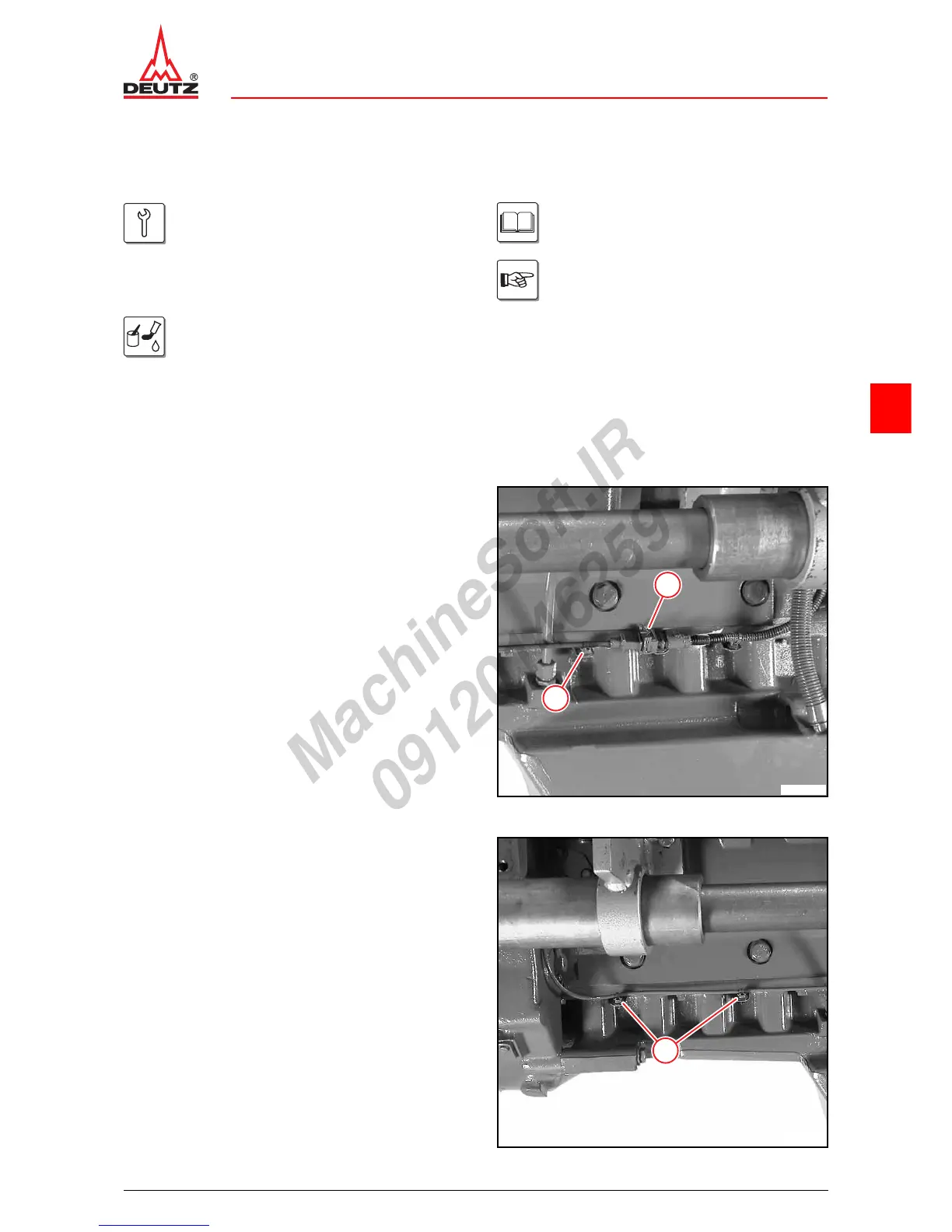

Removing the impulse transmitter
z Attach turning gear.
 W 04-06-03
z Unlock cable plug (1) and disconnect.
z Remove cable tie (2).
1
2
© 40710-0
z Remove cable tie (1).
1
© 40932-0
