© 06/2006 8153-001
1/4
TCD 2015
Cylinder head
I 01-04-08
6
Grinding the cylinder head sealing surface
Commercial available tools:
– Surface milling machine
– Roughness measuring unit
– Depth-measuring
appliance
– W 01-05-01
The relevant manufacturer’s specifications
must be observed when working with the
surface milling machine.

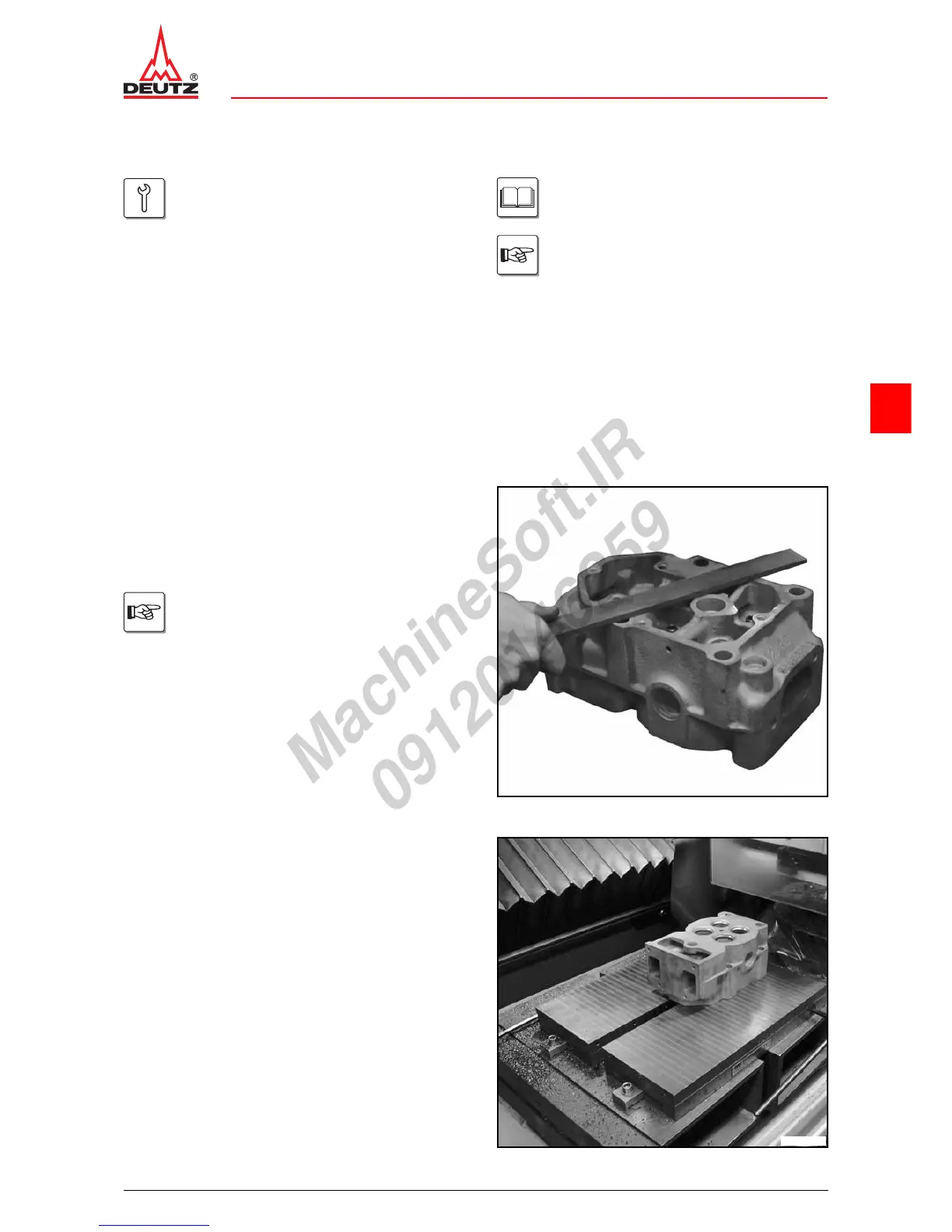

Prepare cylinder head
z Remove valves.
W 01-05-01
z Deburr the upper face of the cylinder head.
The upper face of the cylinder head must
be burr-free and free of gasket remains to
guarantee correct clamping of the cylinder
head.
© 39757-1
Grinding cylinder head surface
z Clamp cylinder head on surface milling machine.
z Align cylinder head.
z Align tool of the surface milling machine with the cyl-
inder head.
© 39758-1
