TCD 2015
Drive system
W 02-01-04
© 06/2006 8163-001
2/6
6

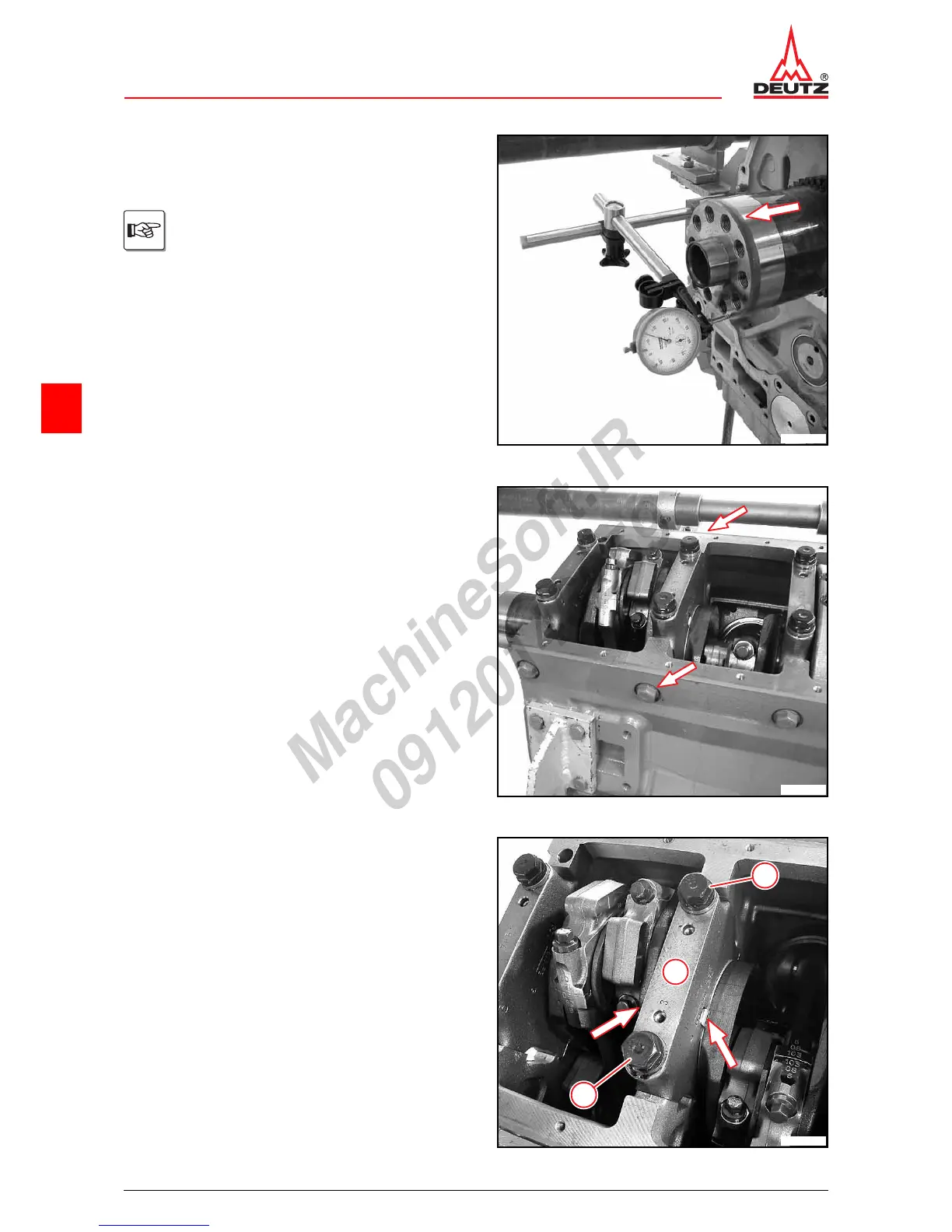

z Press crankshaft in direction of arrow.
z Read off measured value.
P02 34
With deviating axial backlash:
Note measured value, dimension (a).
Set axial backlash by changing the thrust
ring halves.
© 40588-0
Changing thrust ring halves
z Unscrew screws (arrows) with the socket wrench
insert 8035.
© 40593-0
z Unscrew screws (1) with the socket wrench
insert size 24.
z Remove bearing cap (2).
z Remove lower bearing shell.
z Remove bottom thrust ring halves (arrows).
2
1
1
© 40594-0
