© 06/2006 8163-001
3/6
TCD 2015
Drive system
W 02-01-04
6

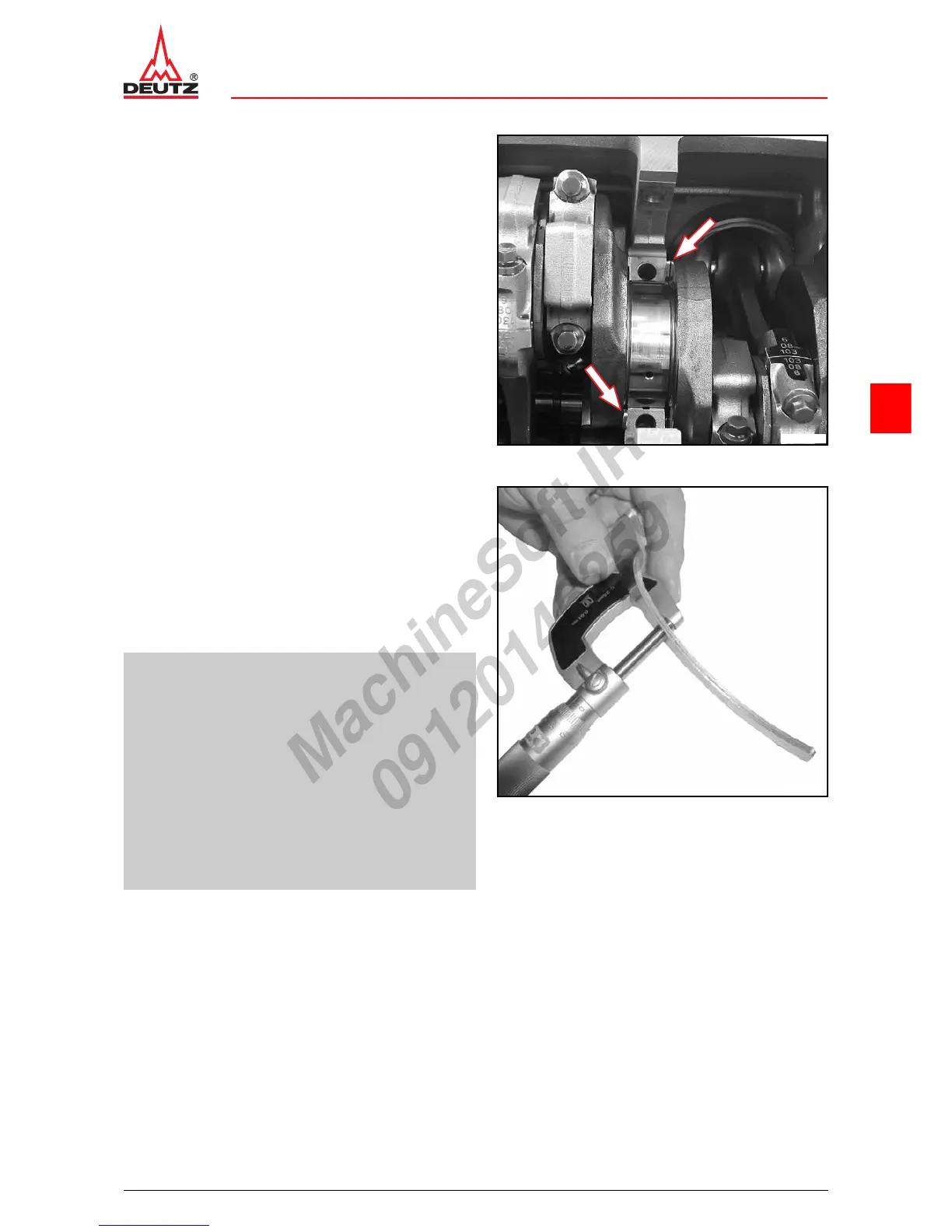

z Remove top thrust ring halves (arrows).
© 40595-0
z Measure thickness of the top and bottom thrust ring
halves.
z Note measured value, dimension (b).
z Determine thickness of the new thrust ring halves.
P02 35
P02 36
P02 37
z Select new thrust ring halves according to calculated
value.
Calculation example
Desired: Thickness of the new thrust ring halves
Given: (x) = thickness for standard, oversize
level 1 and 2
(y) = axial backlash (nominal)
(values from the technical data)
Measured: (a) = 0.4 mm axial backlash (actual)
(b) = 3.26 mm (thickness of the old thrust ring
halves)
Calculation: (x) - (b) = (c)
3.36 mm - 3.26 mm = 0.1 mm
Dimension (a) - Dimension (c)
Result: =0.3mm
Value must be within the given axial
backlash (y).
© 43504-0
