TCD 2015
Drive system
W 02-04-01
© 06/2006 8169-001
6/14
6

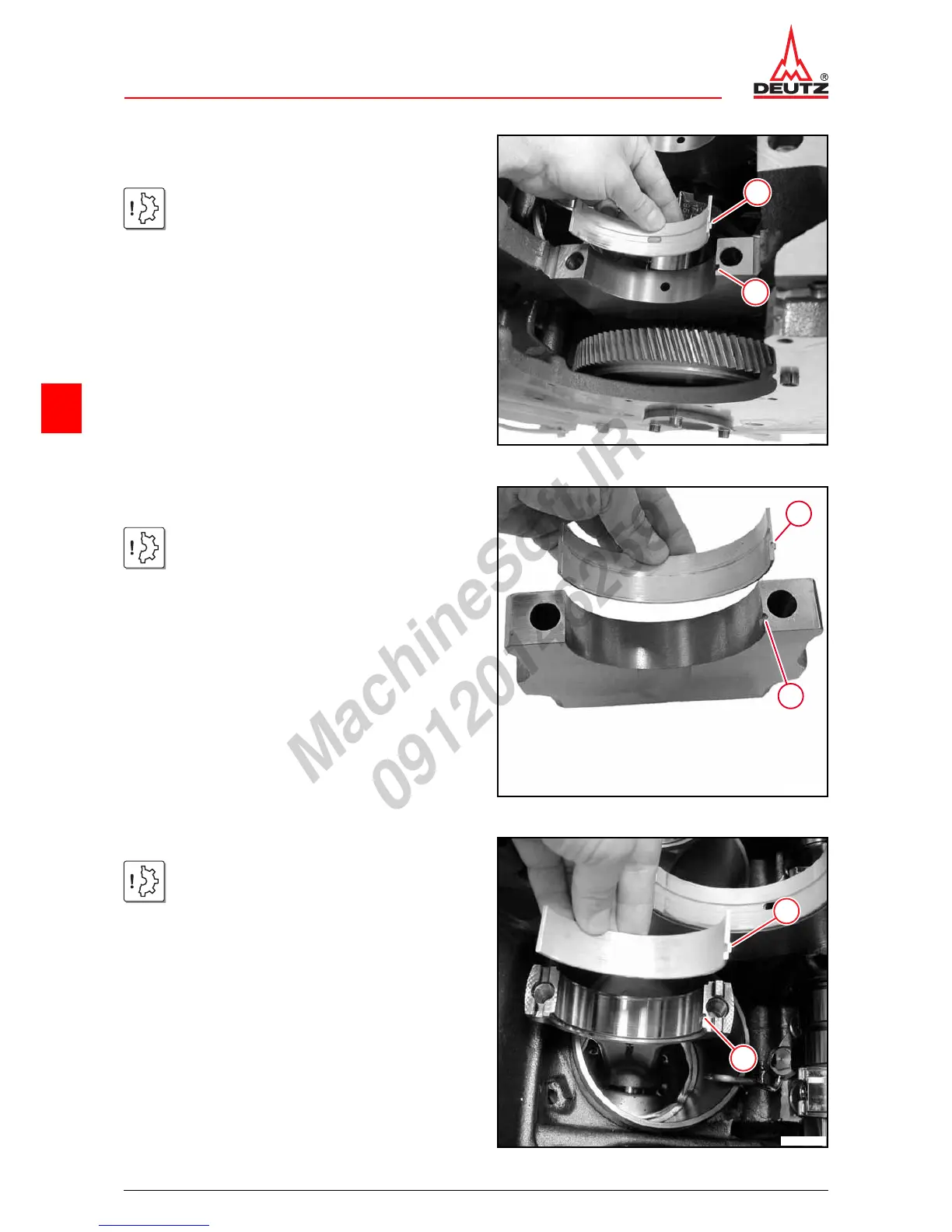

Installing the crankshaft
z Insert upper main bearing shells.
Attention!
Note the assignment of the bearing shells.
The anti-rotation lock (1) must lock in
groove (2).
1
2
© 37042-1
z Insert lower main bearing shells in the respective
main bearing cover.
Attention!
Note the assignment of the bearing shells.
The anti-rotation lock (1) must lock in
groove (2).
1
2
© 37043-1
z Insert bearing shell in the con rod.
Attention!
Note the assignment of the bearing shells.
Insert big end bearing shell with the black
anodised rear side in the connecting rod.
The anti-rotation lock (1) must lock in
groove (2).
1
2
© 37044-1
