© 06/2006 8169-001
5/14
TCD 2015
Drive system
W 02-04-01
6

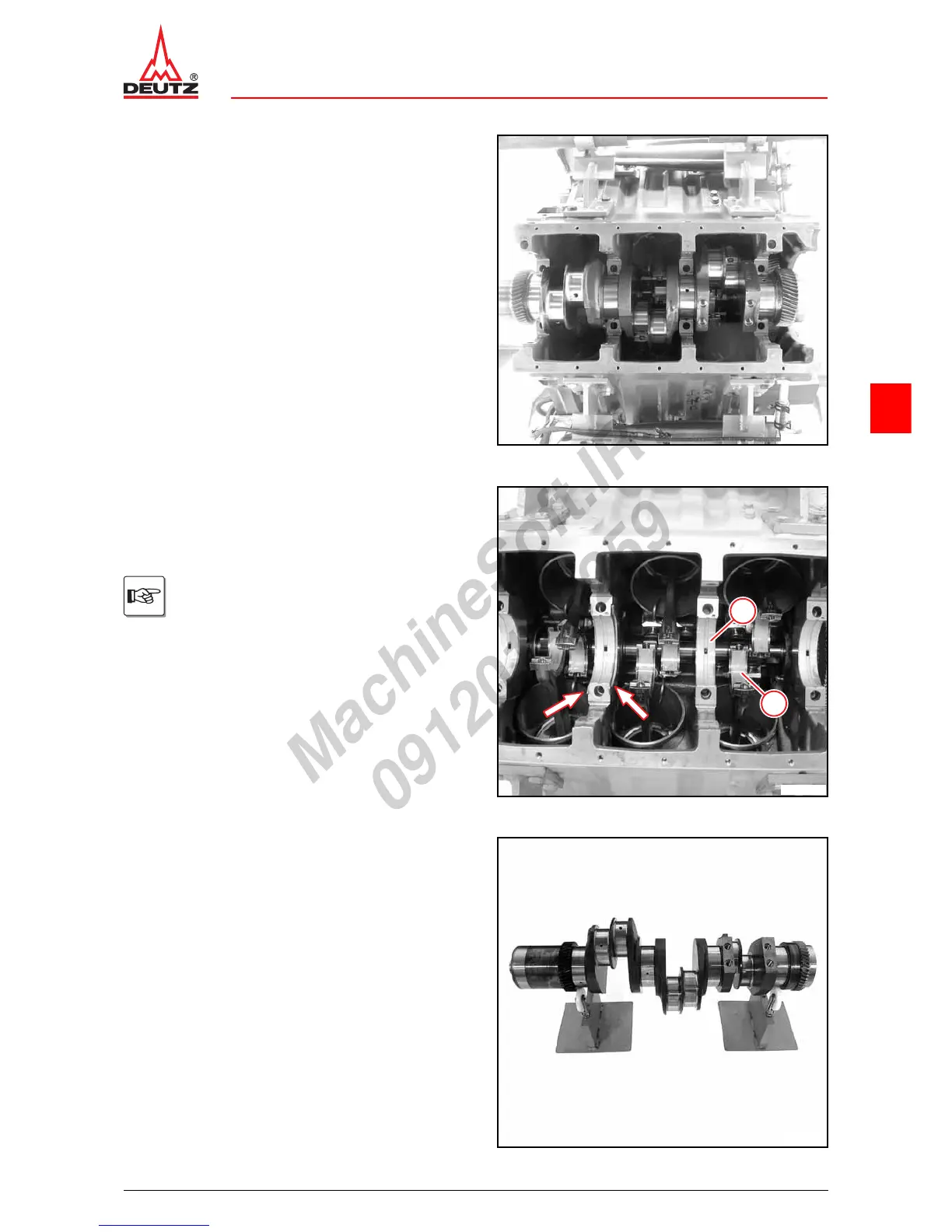

z Remove turn-over gear.
z Lift out the crankshaft.
z Place crankshaft on prism.
© 42145-1
z Remove top thrust ring halves (arrows).
z Remove all main bearing shells (1).
z Remove all big end bearing shells (2).
z Visually inspect the components.
Lay out components in the order in which
they should be installed.
Note order of cylinders.
1
2
© 37041-1
z Check crankshaft.
W 02-01-07
z Check axial backlash of crankshaft (crankshaft re-
moved).
W 02-01-04
© 40485-0
