Deutz TCD 2015 - Checking Internal Diameter of the con Rod Bearing Shells

© 06/2006 8167-001
5/10
TCD 2015
Drive system
W 02-03-01
6

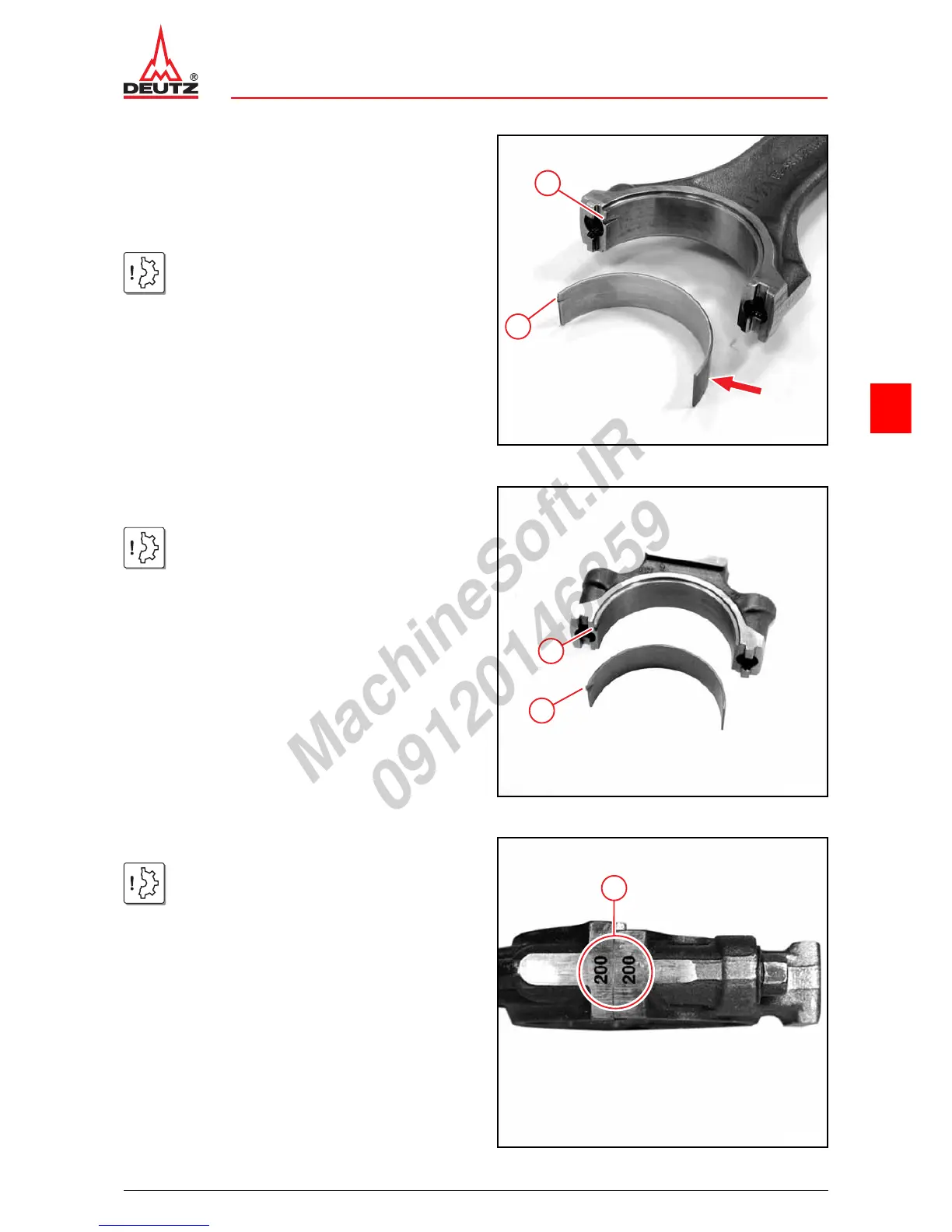

Checking internal diameter of the con rod
bearing shells
z Remove screws.
z Remove the con rod bearing cover.
z Insert bearing shell in the con rod.
Attention!
Note the assignment of the bearing shells.
Insert big end bearing shell with the black
anodised rear side (arrow) in the connec-
ting rod.
The anti-rotation lock (1) must lock in
groove (2).
1
2
© 36768-1
z Insert bearing shell in the respective big end bearing
cap.
Attention!
Note the assignment of the bearing shells.
The anti-rotation lock (1) must lock in
groove (2).
1
2
© 36769-1
z Mount big end bearing cap.
Attention!
Note the assignment of the big end bearing
cap.
The identification numbers (1) on the con
rod and the big end bearing cap must be
identical and opposite to each other when
assembled.
1
© 34771-2
