Deutz TCD 2015 - Removing Turning Gear

TCD 2015
Engine control
W 04-06-03
© 06/2006 8190-001
2/2
6

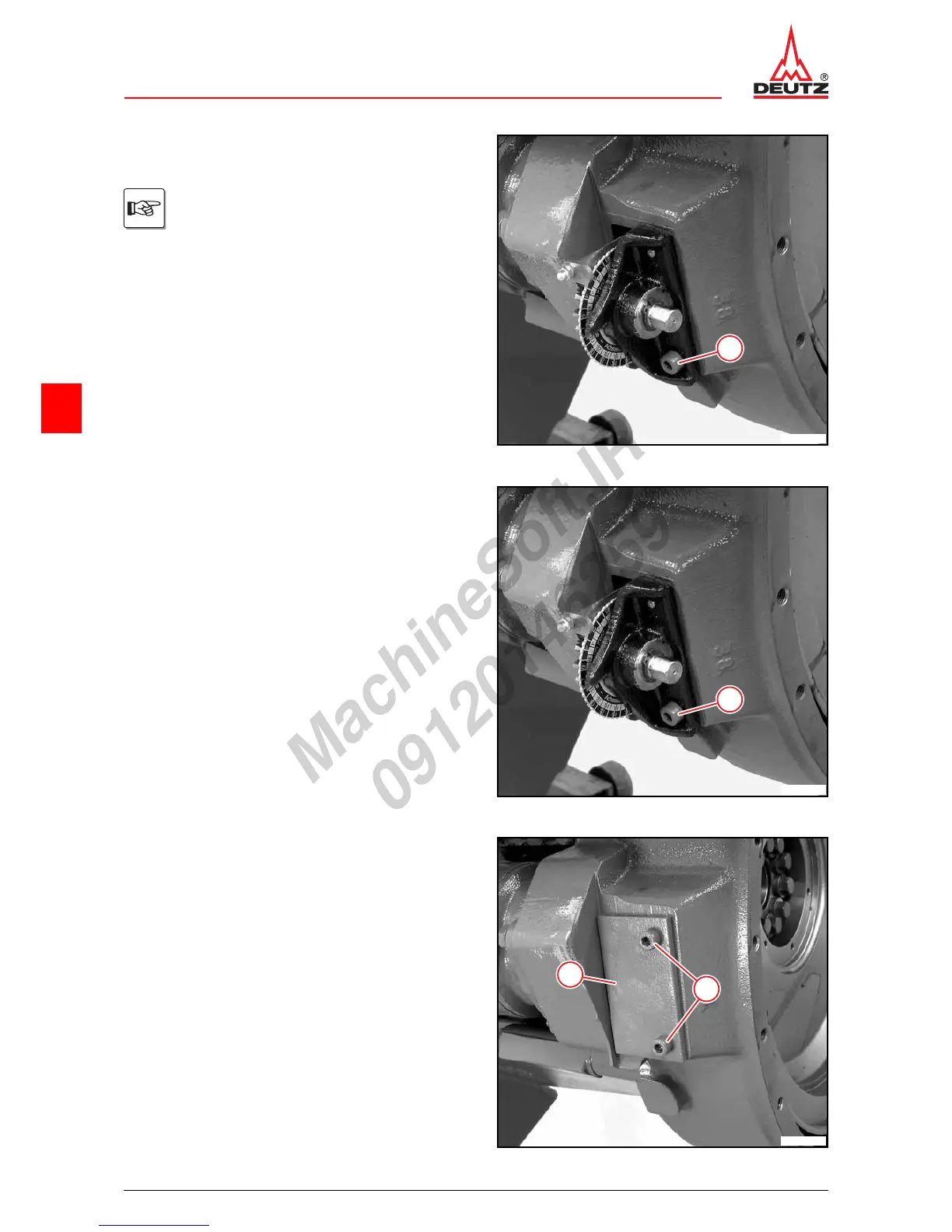

z Tighten screw (1).
 A03 085
Gear wheel of the turning gear grips the
starter gear ring.
1
© 40463-0
Removing turning gear
z Unscrew screw (1).
z Remove turn-over gear.
1
© 40463-0
z Clean sealing surfaces.
z Mount new gasket.
z Mount cover (2).
z Insert screws (1) with locking agent.
z Tighten screws (1).
 A03 085
1
2
© 40461-0
