TCD 2015
Exhaust system/Charging
W 06-06-04
6
Removing and installing the turbocharger
Commercial available tools
Special tools:
– Special wrench . . . . . . . . . . . . . . 170100
– Fitting compound
DEUTZ S1
– W 06-02-03
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.

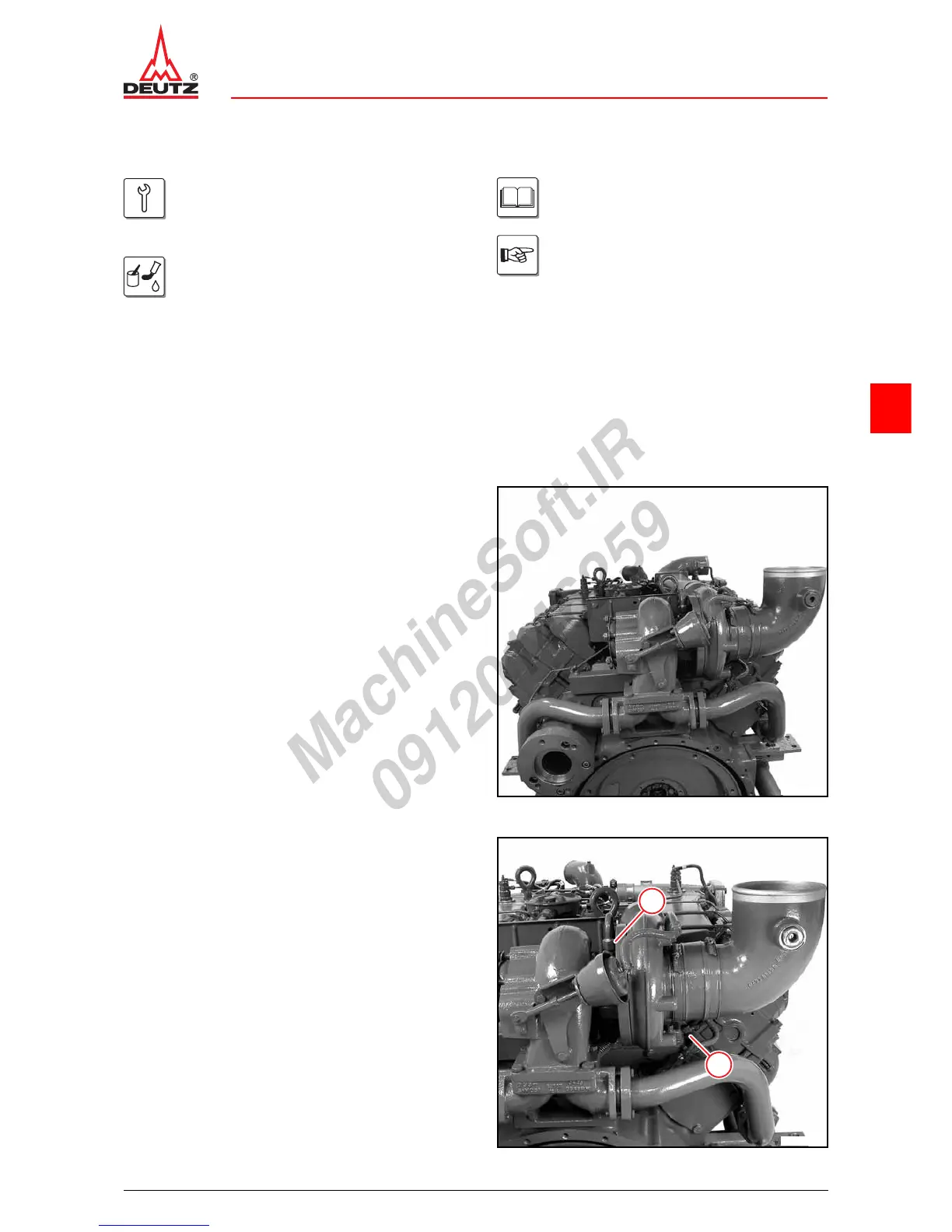

Removing turbocharger
z Remove the charge air pipe.
W 06-02-03
© 40753-0
z Unscrew lock nuts (1) with special wrench.
z Remove screw-in nipple.
z Remove sealing rings.
1
1
© 40754-0
