Deutz TCD 2015 - Installing the Generator

© 06/2006 8245-001
3/8
TCD 2015
Electrical system
W 13-02-03
6

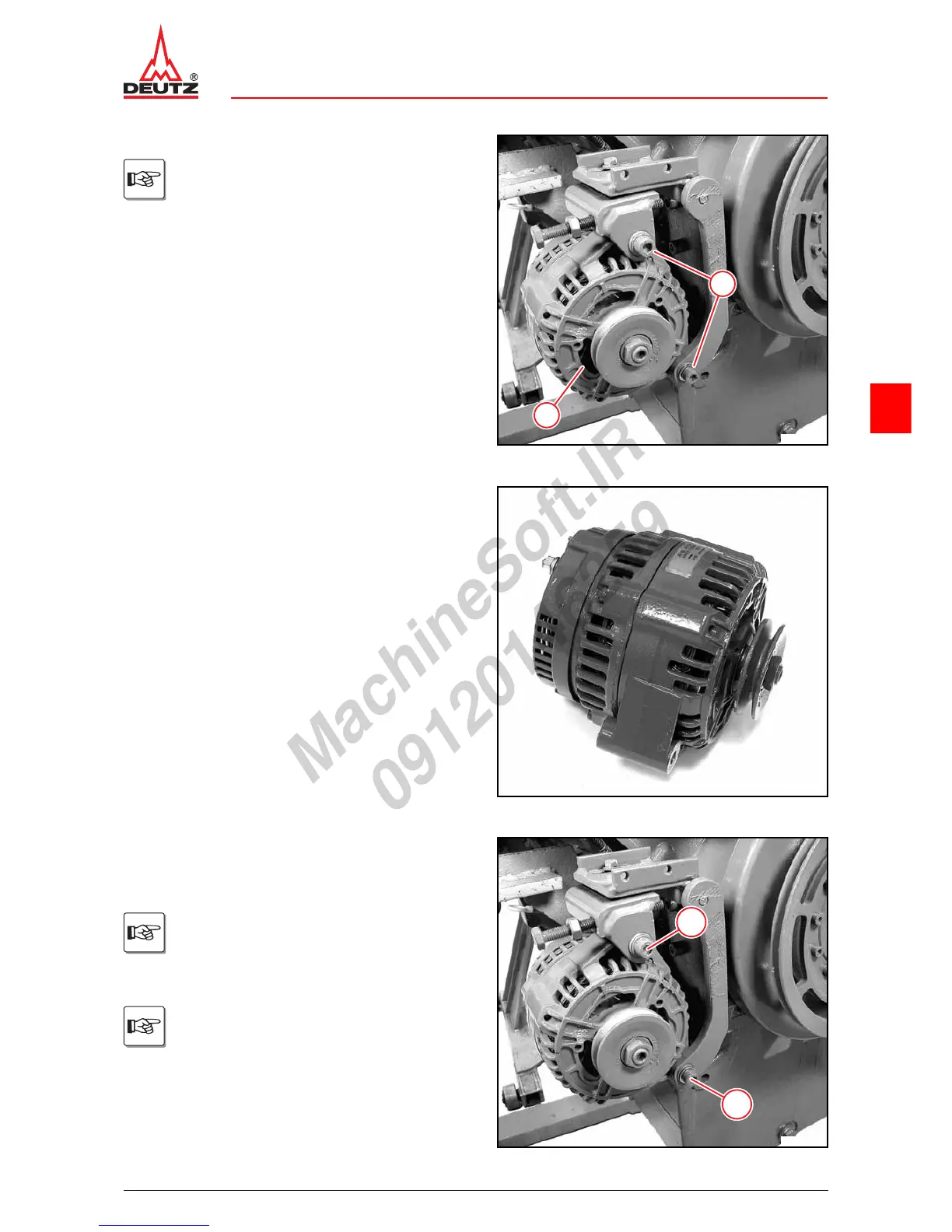

z Unscrew screws (1).
z Remove generator (2).
Hold nuts.
1
2
© 40979-0
z Visually inspect the components.
© 40980-0
Installing the generator
z Mount generator.
z Insert screws.
z Fasten screws.
Note different screw lengths:
M10 x 100 mm (1)
M10 x 120 mm (2)
Hold nuts.
1
2
© 40988-1
