TCD 2015
Drive system
W 02-02-04
6
Renewing the crankshaft sealing ring
(opposite side to flywheel)
Commercial available tools:
– Depth-measuring
appliance
– Pricker. . . . . . . . . . . . . . . . . . . . . . . 8198
– Assembly lever . . . . . . . . . . . . . . . . 9017
Special tools:
– Assembly tool . . . . . . . . . . . . . . . 142640
– Self-tapping screw
– Washer

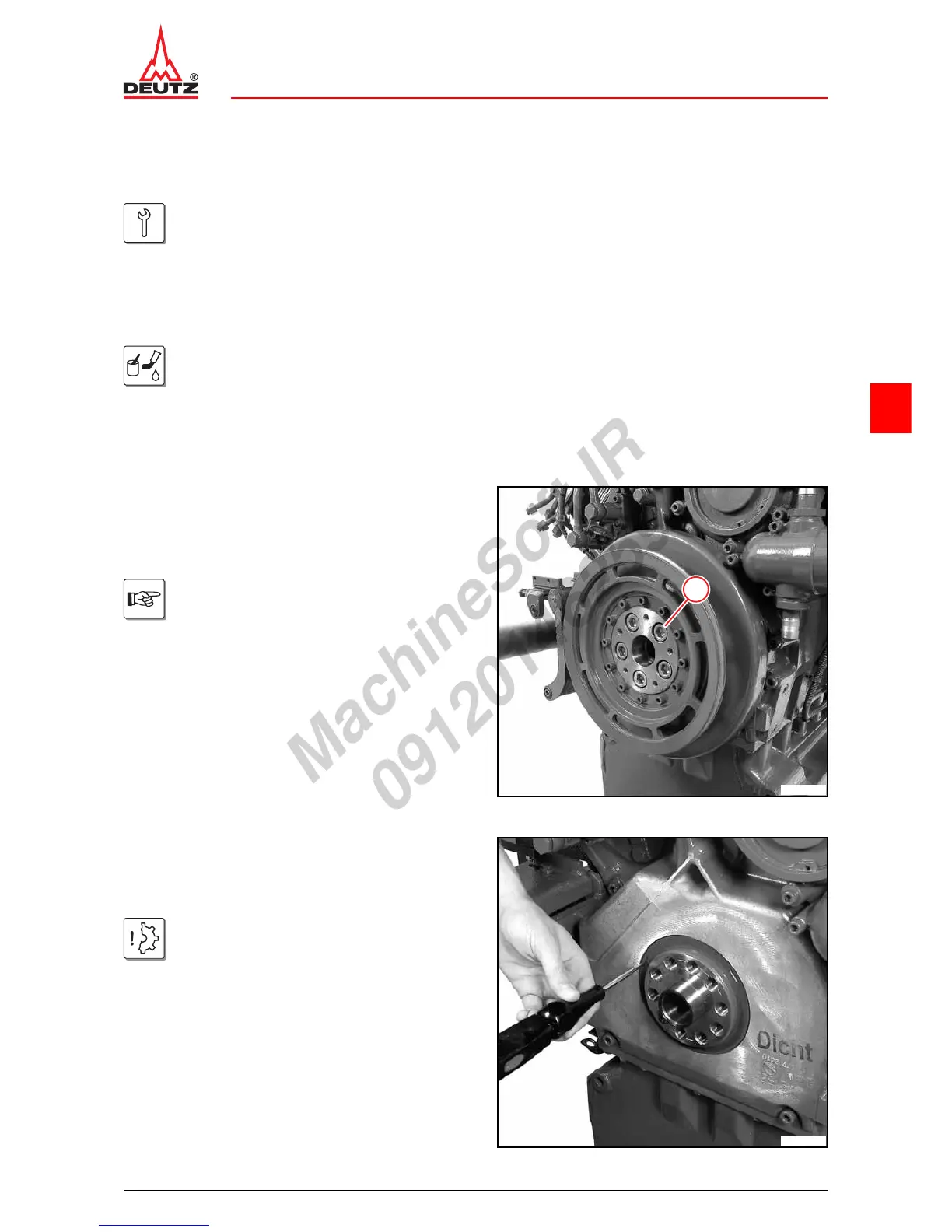

Removing the crankshaft sealing ring
z Unscrew all screws (1).
z Remove flanged hub with torsional vibration damper
and V-belt pulley.
Block flywheel with suitable tool.
1
© 40659-0
z Loosen crankshaft sealing ring in its seat evenly with
a mandrel.
z Make a hole in the crankshaft sealing ring with a
pricker.
Attention!
Do not damage the genset support and
crankshaft!
© 40660-0
