© 06/2006 8152-001
3/6
TCD 2015
Cylinder head
W 01-02-06
6

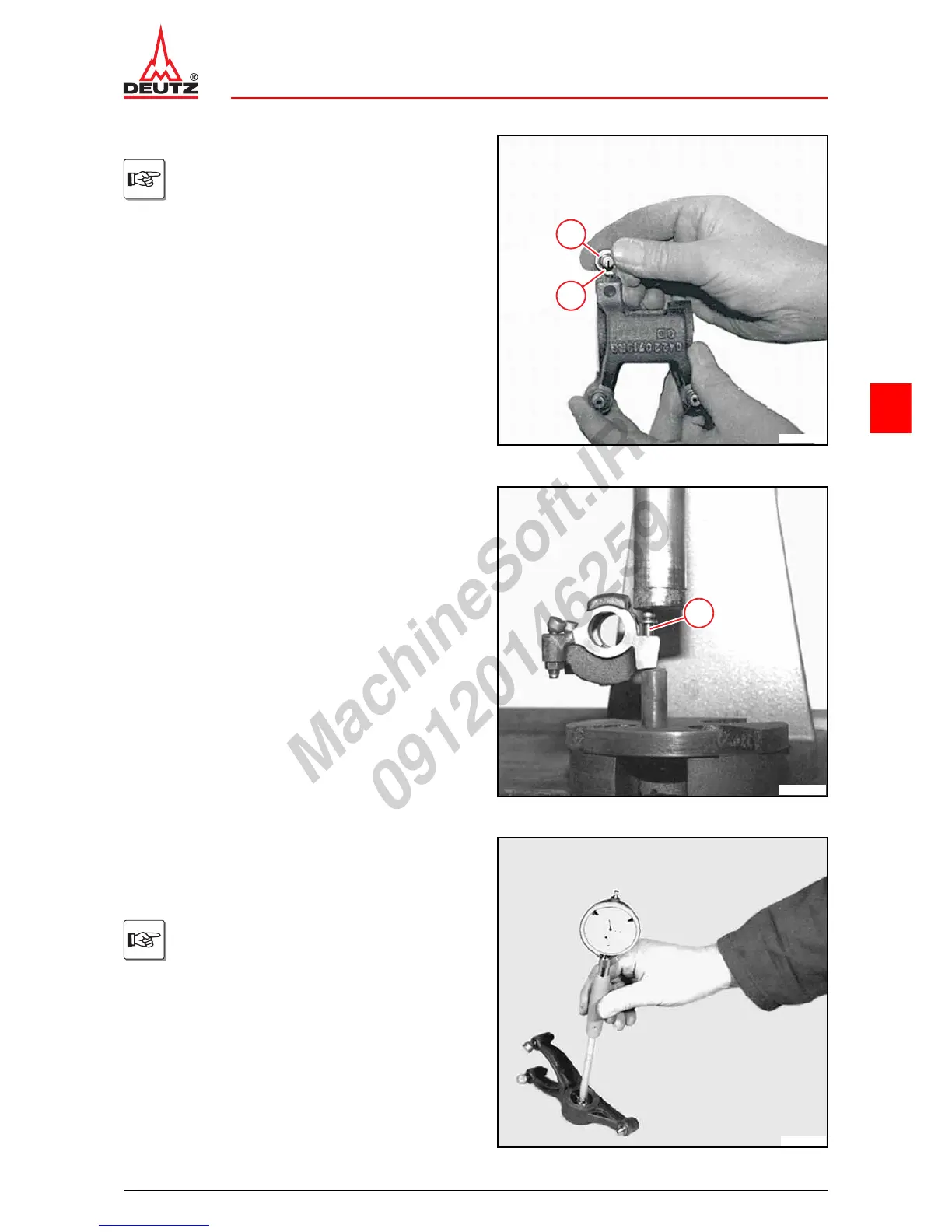

z Mount new ball stud (1).
Notch (2) faces vertically to the rocker arm
shaft.
2
1
© 34828_3
z Place disassembly/assembly tool underneath.
z Press in ball stud (1).
z Check oil channel for free passage.
1
© 34829_3
Checking rocker arm (exhaust valves)
z Measure rocker arm bore.
P01 72
When the wear limit is reached the rocker
arm must be renewed.
© 34830-2
