TCD 2015
Drive system
W 02-15-01
© 06/2006 8173-001
2/4
6

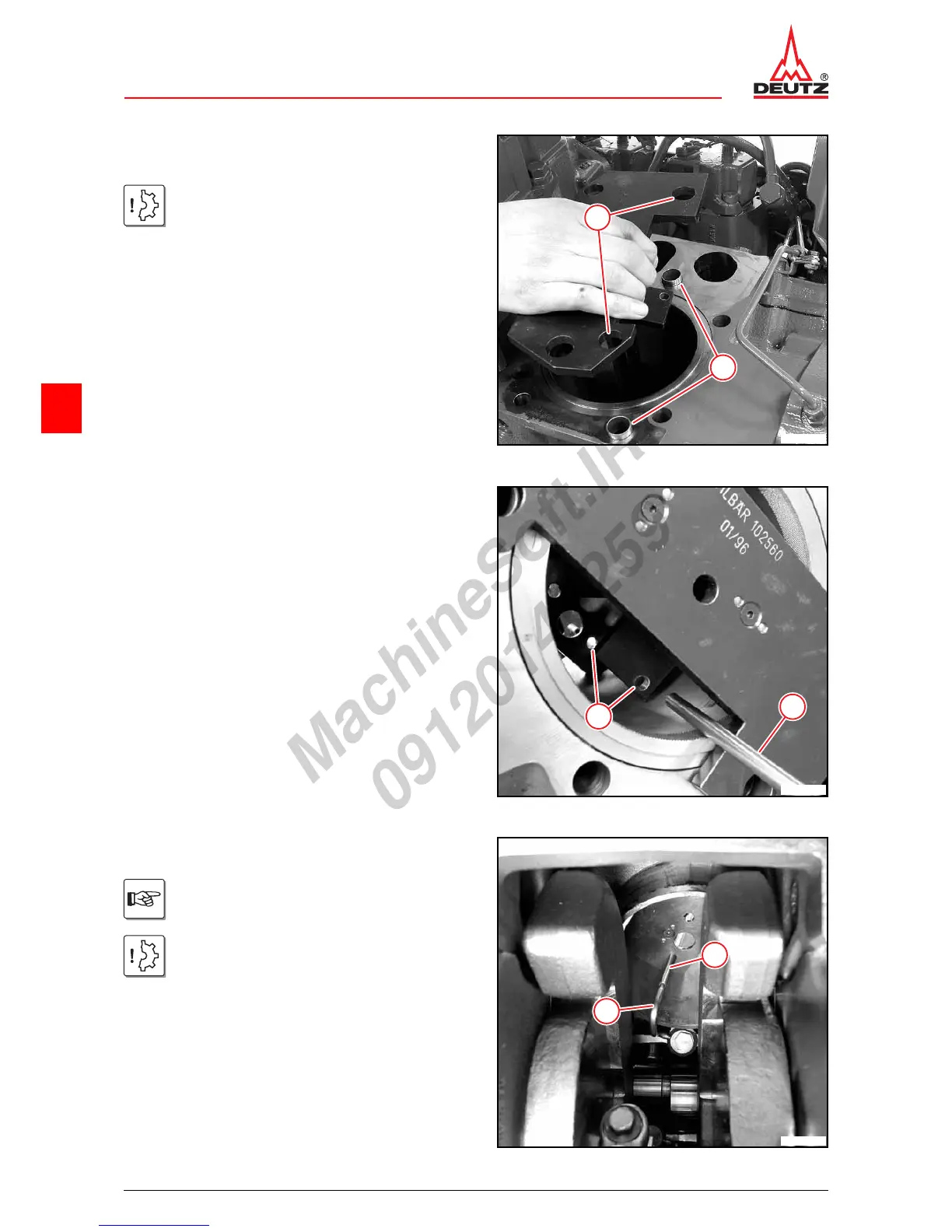

Check the jet position of the piston cooling
nozzle.
z Insert tester in cylinder liner.
z Set tester with the bores (1) over the clamping
bushings (2).
Attention!
Do not damage the cylinder liner when
inserting the tester.
2
1
© 40787-0
z Insert dipstick (1) in the bores (2) of the tester.
2
1
© 42356-2
z Insert the tip of the dipstick (1) without using force
into the opening in the piston cooling nozzle (2).
The piston cooling nozzle must be turned.
Attention!
If it cannot be turned, the piston cooling
nozzle must be renewed!
The piston cooling nozzle may not be bent!
The piston cooling nozzle must be in line
with the dipstick!
1
2
© 42357-1
