© 06/2006 8176-001
3/6
TCD 2015
Crankcase
W 03-03-02
6

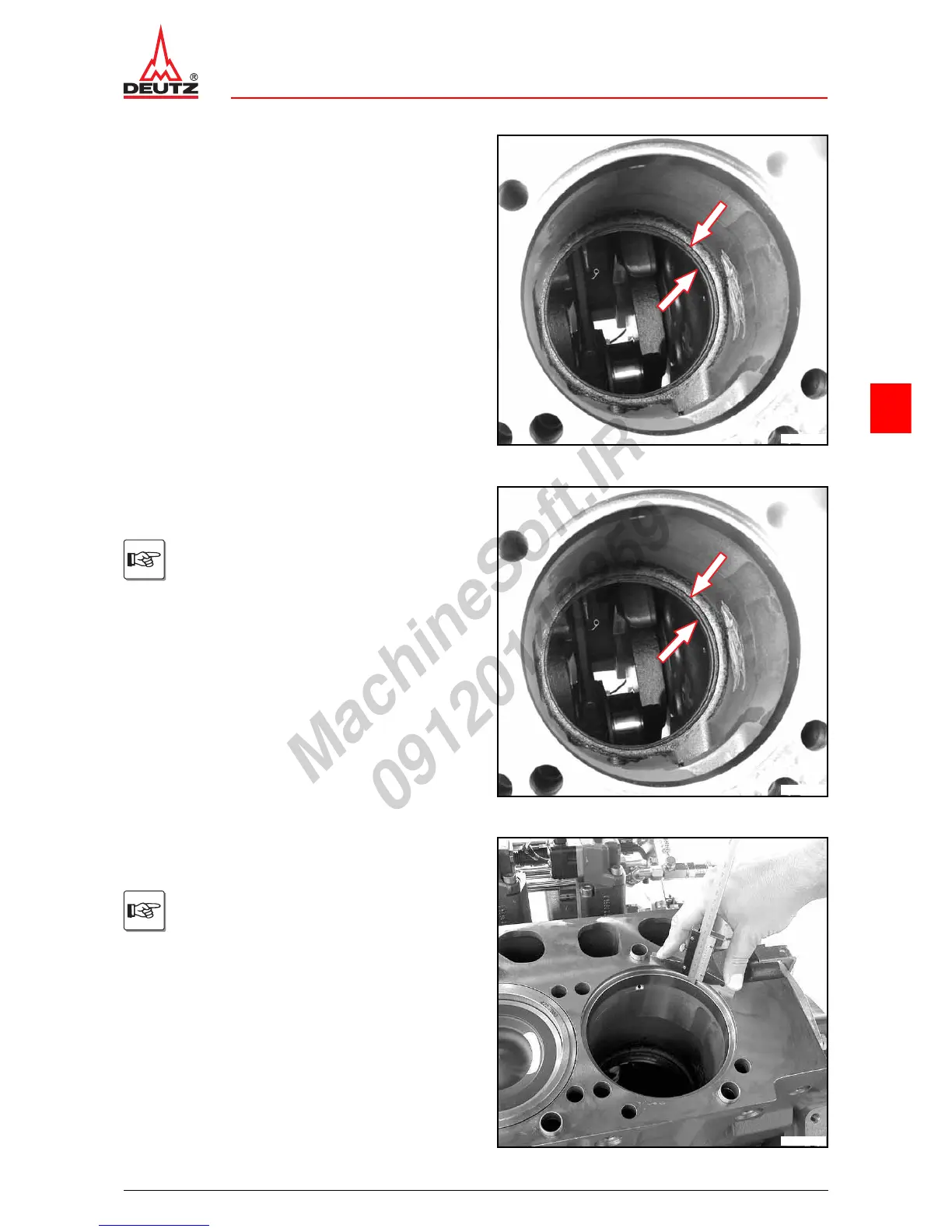

z Remove both O-rings (arrows).
z Test the cylinder liners.
W 03-03-01
© 42231-1
Install cylinder liner
z Insert new O-rings (arrows).
Pull the O-rings apart slightly to prevent
them falling out during assembly.
© 42231-1
z Measure collar rest with depth measuring appliance.
P03 35
Carry out the measurement at several pla-
ces on the collar rest.
© 42392-1
