TCD 2015
Crankcase
W 03-03-02
© 06/2006 8176-001
4/6
6

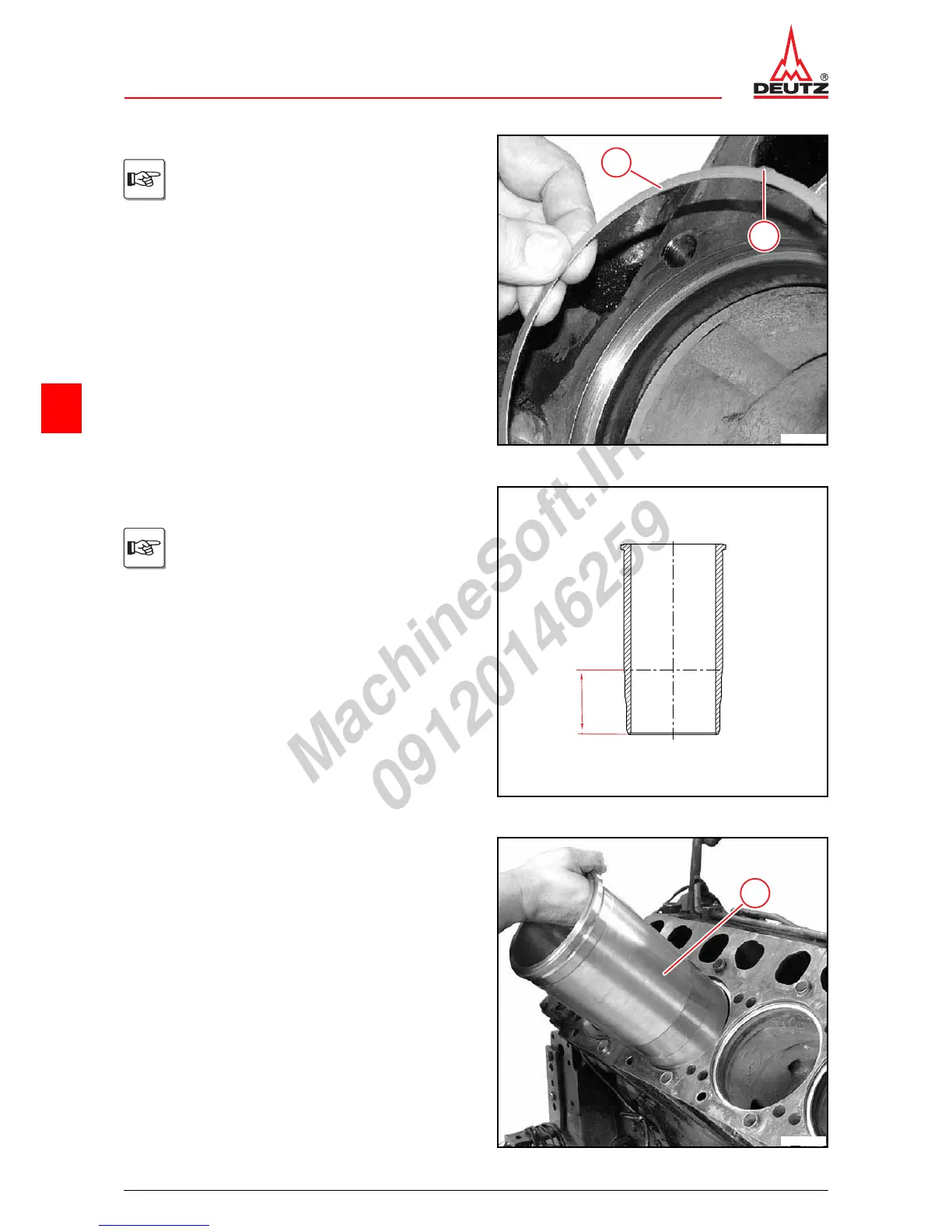

z Insert shim ring (1).
A centring lug (2) points up.
1
2
© 39911-0
z Coat the cylinder liner in the "X" area with fitting com-
pound.
Make sure that the liner surface and the
crankcase are absolutely clean before
installing the cylinder liner.
X
© 34932-1
z Insert the cylinder liner (1) in the crankcase.
1
© 39918-0
