Deutz TCD 2015 - Dismantling Genset Support

© 06/2006 8179-001
1/10
TCD 2015
Crankcase
W 03-08-03
6
Dismantling and assembling genset support
Commercial available tools – W 03-08-01

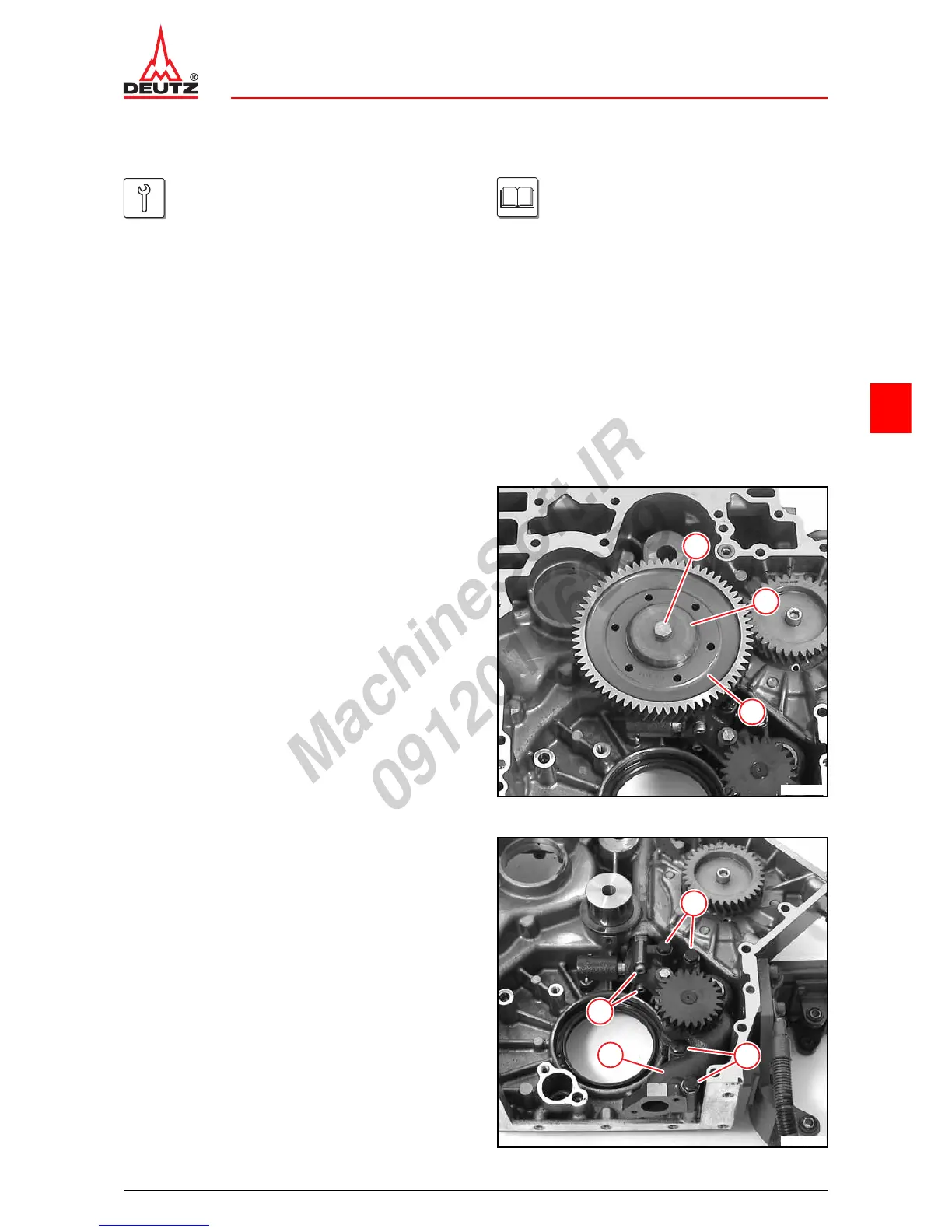

Dismantling genset support
z Remove genset support.
 W 03-08-01
z Unscrew screw (1).
z Remove thrust washer (2).
z Remove idler gear (3).
1
2
3
© 40556-0
z Unscrew screws (1).
z Unscrew screws (2).
z Remove lubricating oil pump (3).
1
3
1
2
© 40557-0
