Deutz TCD 2015 - Page 244

TCD 2015
Crankcase
W 03-08-03
© 06/2006 8179-001
2/10
6

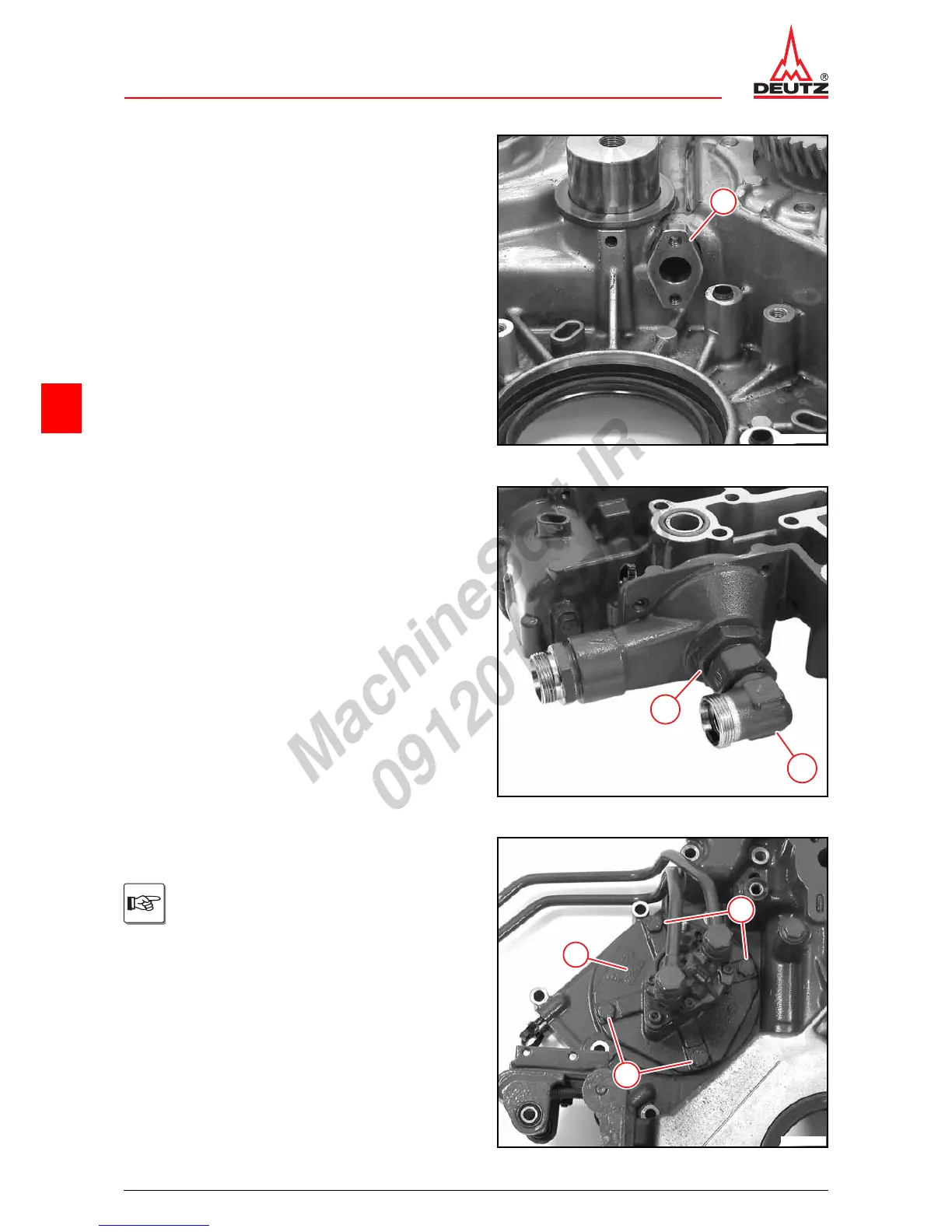

z Pull out plug element (1).
1
© 40558-0
z Unscrew nut (1).
z Remove adapter (2).
z Remove O-rings.
2
1
© 45371_1
z Unscrew screws (1).
z Remove bearing housing (2).
z Remove O-ring.
The fuel supply pump, idler gear and fuel
pipes remain installed on the bearing hou-
sing.
1
2
1
© 40559-0
