TCD 2015
Crankcase
W 03-11-01
© 06/2006 8183-001
4/8
6

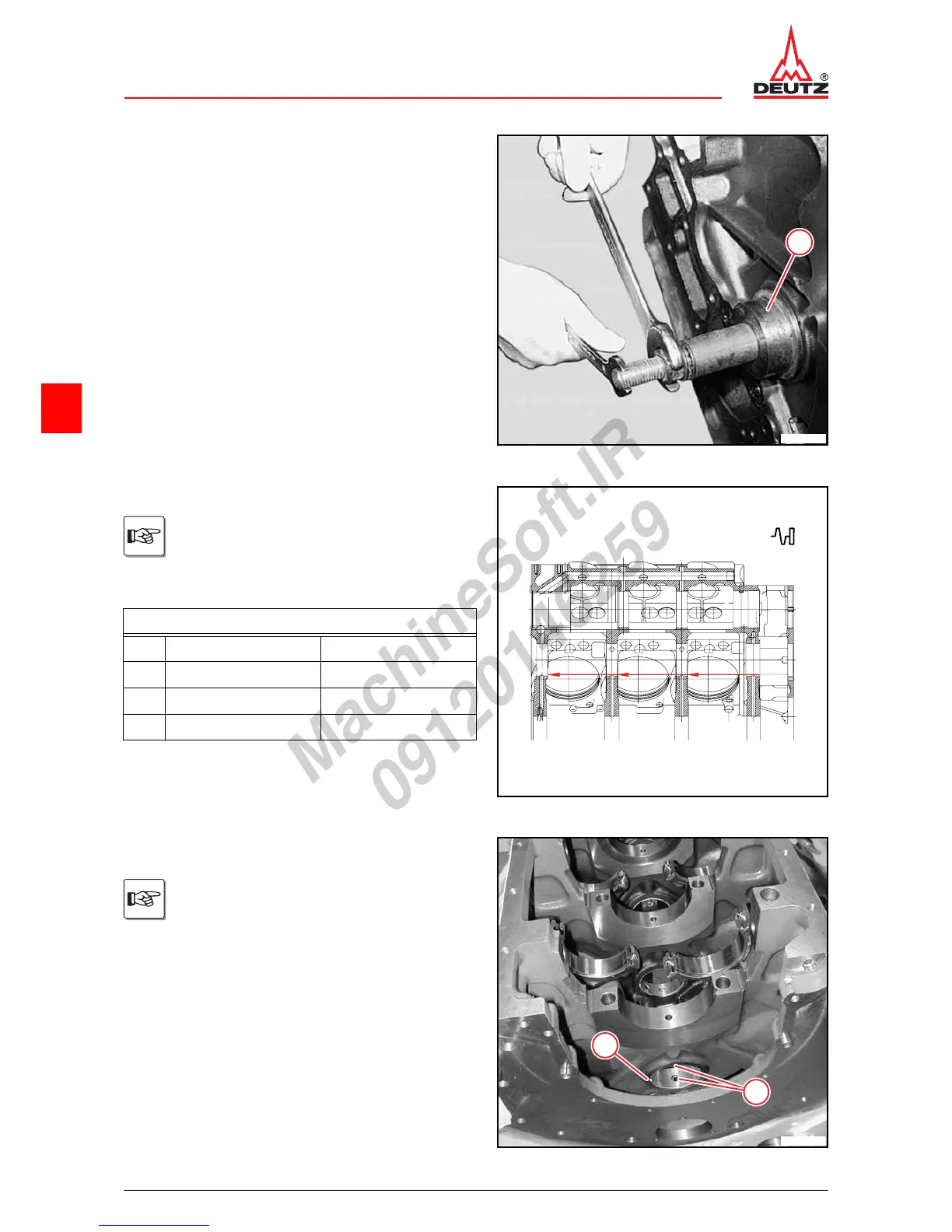

z Insert spindle with puller bush on flywheel side.
z Mount counter bearing (1) on flywheel side.
z Mount spacing sleeve.
z Mount ball bearing.
z Screw on nut.
z Pull out flywheel side camshaft bearing.
1
© 34716-2
Installing camshaft bearing
Diagram for the installation depth of the
camshaft bearings.
Measuring the depth from the flywheel side
A0 mm
B 172,5 mm
C 337,5 mm
D 502,5 mm
ABCD
© 45415-1
0,2
0,2
0,2
0,2
0,2
0,2
z Mount the new camshaft bearing (flywheel side) so
that the recess (1) faces the flywheel.
The diagram shows the camshaft bearing
in the installed state.
The camshaft bearing (flywheel side) has
two lubricating oil bores.
Make sure the lubricating oil bores (2) in
the camshaft bearing and crankcase are in
line.
2
1
© 37179-1
