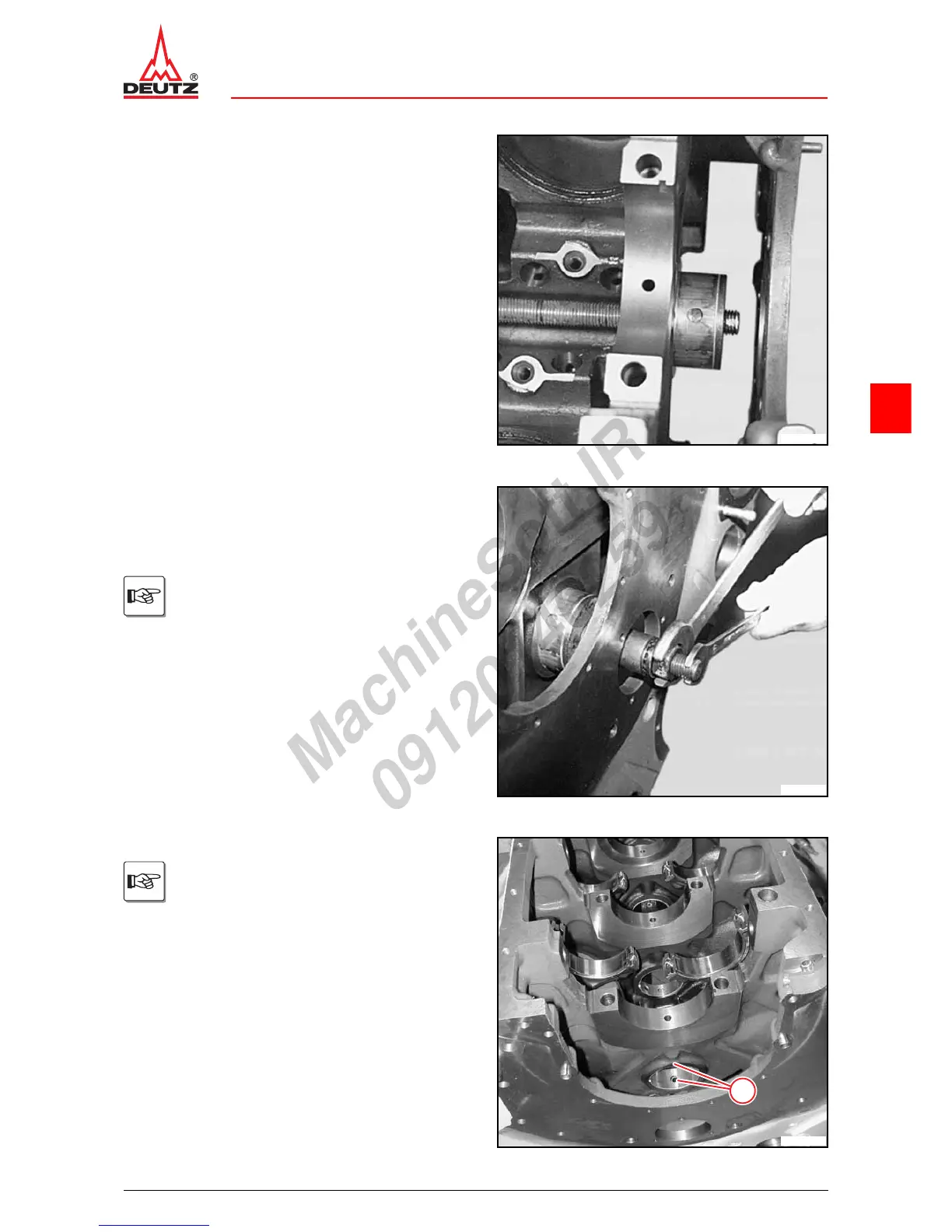

TCD 2015
Crankcase
W 03-11-01
6
z Insert spindle with counter bearing on the opposite
side to the flywheel.
z Insert puller bush in camshaft bearing and push onto
the spindle.
© 34718-2
z Mount spacing sleeve.
z Mount ball bearing.
z Screw on nut.
z Press in camshaft bearing (flywheel side).
Installation depth, see diagram.
© 34720-2
z Check that the lubricating oil bores (1) are in line.
If the lubricating oil bore is not in line, the
camshaft bearing must be removed and re-
installed.
1
© 40900-0
