Deutz TCD 2015 - Removing the Camshaft

© 06/2006 8187-001
1/24
TCD 2015
Engine control
W 04-05-05
6
Removing and installing the camshaft
Commercial available tools:
– Lifting gear
– Depth-measuring
appliance
– Magnetic measuring stand
– Rotation angle disc . . . . . . . . . . . . . 8190
Special tools:
– Dial gauge. . . . . . . . . . . . . . . . . . 100400
– Counter support . . . . . . . . . . . . . 144150
– Packing compound
DEUTZ DW 48
– Locking agent
DEUTZ DW 72
– W 01-02-02
– W 02-04-01
– W 04-05-06
– W 05-07-03
– W 06-06-04
– W 07-04-01 . . . . . . . . . . . . (Cylinder A1)
– W 07-04-01 . . . . . . . . . . . . (Cylinder
A2-B3)
– W 07-06-04

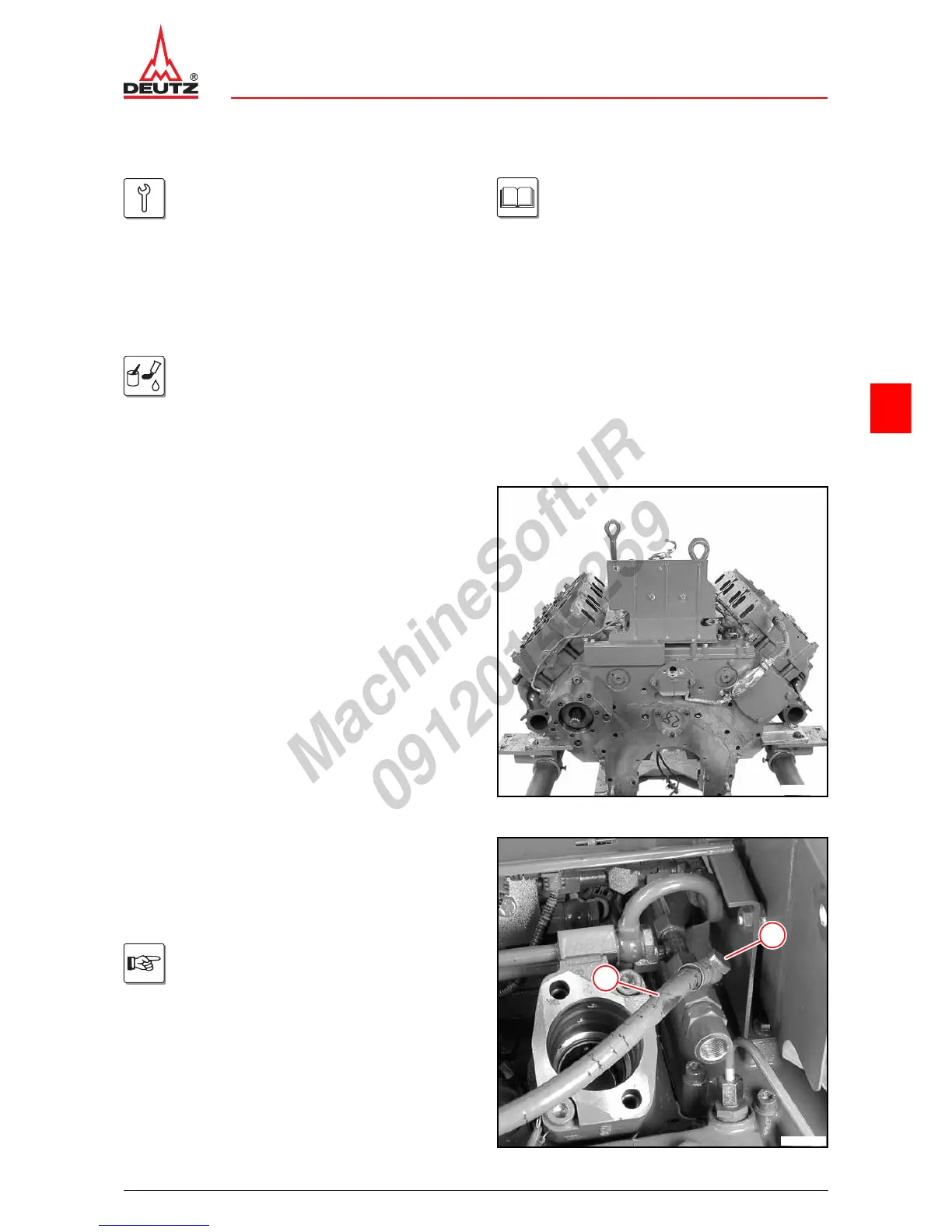

Removing the camshaft
z Remove rocker arm brackets.
 W 01-02-02
z Remove crankshaft.
 W 02-04-01
z Remove impulse transmitter (camshaft).
 W 05-07-03
© 40409-0
z Remove injection pumps (cylinder A1).
 W 07-04-01
z Remove injection pumps (cylinder A2-B3).
 W 07-04-01
z Unscrew hollow screw (1).
z Place fuel hose (2) to one side.
z Remove sealing rings.
Do not remove injection pump housing.
1
2
© 40458-0
