Deutz TCD 2015 - Removing and Installing Genset Support

© 06/2006 8178-001
1/14
TCD 2015
Crankcase
W 03-08-01
6
Removing and installing genset support
Commercial available tools:
– Open wrench size SW 22
– Packing compound
DEUTZ DW 47
– W 02-02-04
– W 06-07-03 . . . . . . . . . . . . (A-bank)
– W 06-07-03 . . . . . . . . . . . . (B-bank)
– W 08-04-06
– W 09-07-08
– W 09-08-04
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.
Removing genset support
z Remove charge air pipe (A-bank).
 W 06-07-03
z Remove charge air pipe (B-bank).
 W 06-07-03

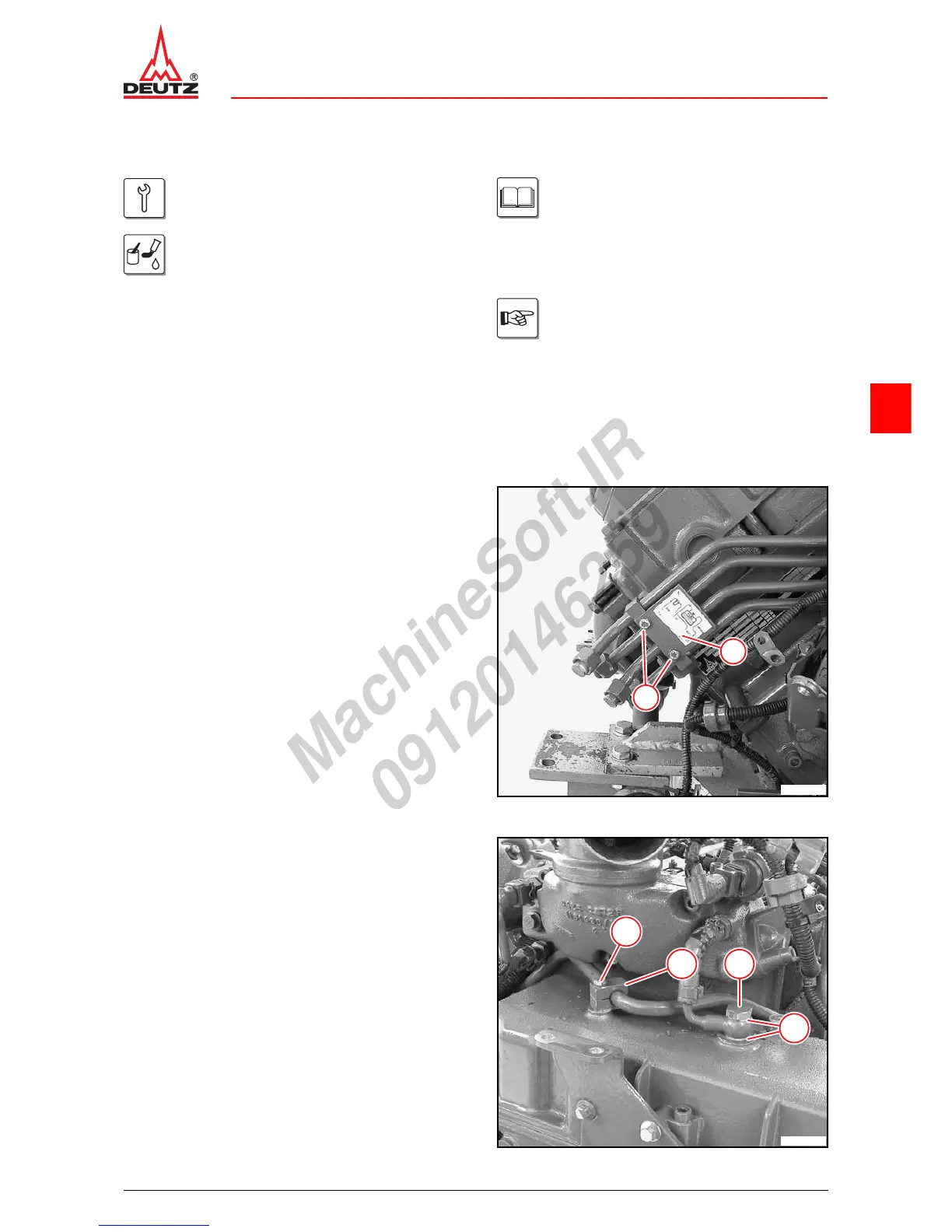

z Unscrew screws (1).
z Remove the holder (2).
1
2
© 40519-0
z Unscrew screw (1).
z Remove the holder (2).
z Unscrew hollow screw (3).
z Remove sealing rings (4).
23
4
1
© 40520-1
