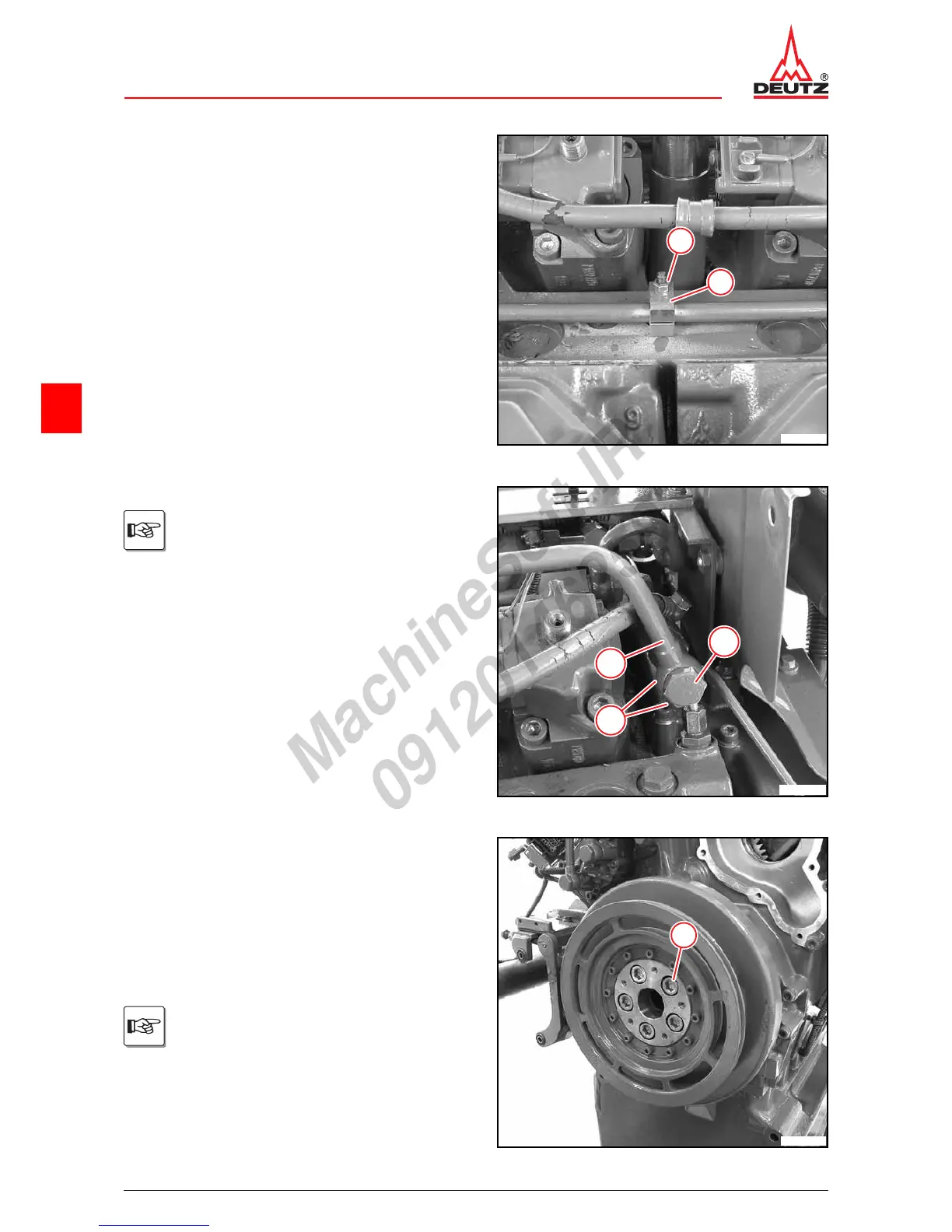

TCD 2015
Crankcase
W 03-08-01
© 06/2006 8178-001
2/14
6
z Unscrew nut (1).
z Remove the holder (2).
1
2
© 40521-0
z Unscrew hollow screw (1).
z Remove fuel pipe (3).
z Remove sealing rings (2).
Hold overflow valve.
3
2
1
© 45803_0
z Remove thermostat housing.
W 09-08-04
z Remove coolant pump.
W 09-07-08
z Unscrew all screws (1).
z Remove flanged hub with torsional vibration damper
and V-belt pulley.
Block flywheel with suitable tool.
1
© 40531-0
