Lube oil system
W 08-04-06
6
Removing and installing the oil suction pipe
Commercial available tools – W 08-04-07
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.

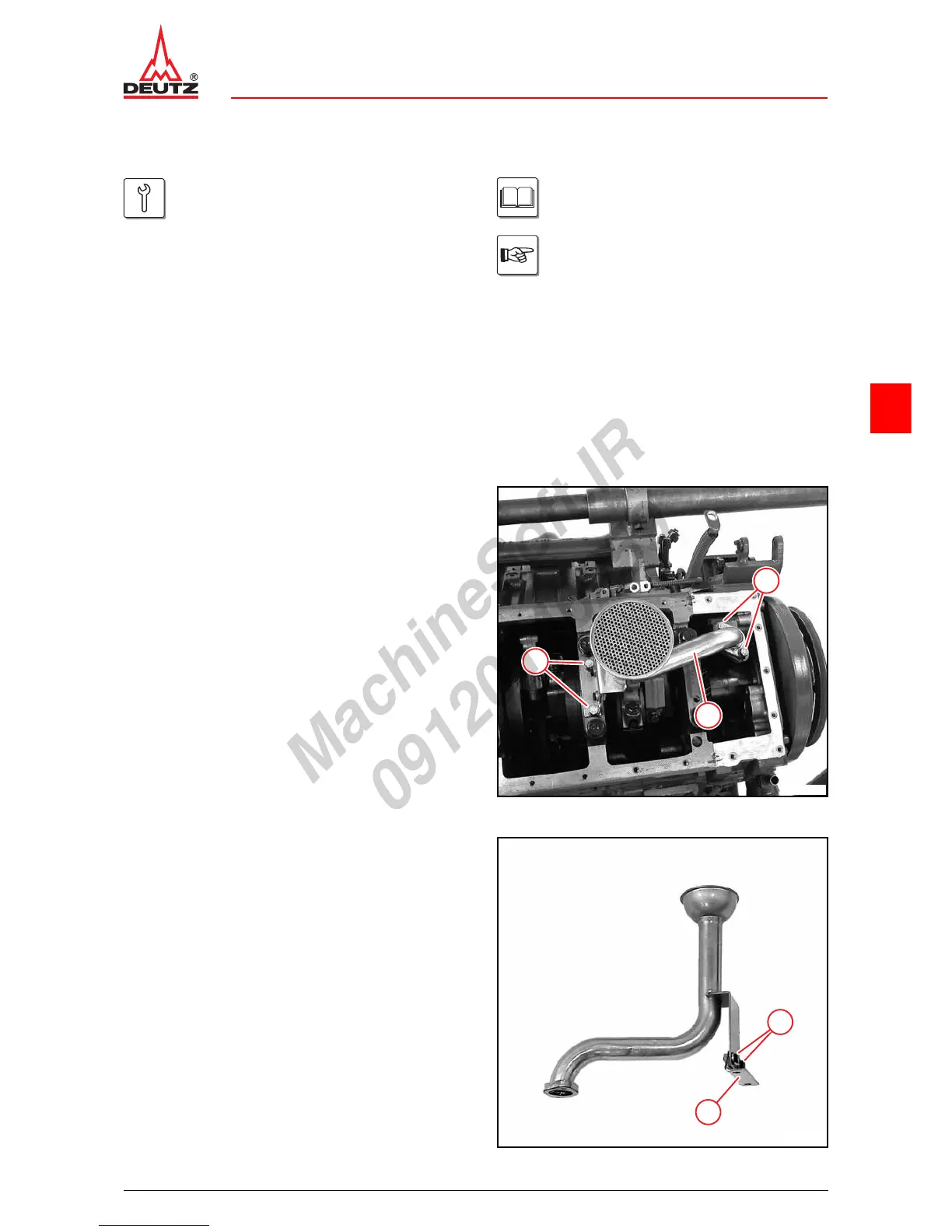

Removing the oil suction pipe
z Remove lubricating oil pan.
W 08-04-07
z Unscrew screws (1).
z Remove oil suction pipe (2).
z Remove gasket.
1
2
1
© 40833-0
z Unscrew screws (1).
z Remove the holder (2).
z Visually inspect the components.
1
2
© 40834-0
