TCD 2015 Railway
Fuel system
W 07-13-01
© 06/2006 8227-001
6/6
6

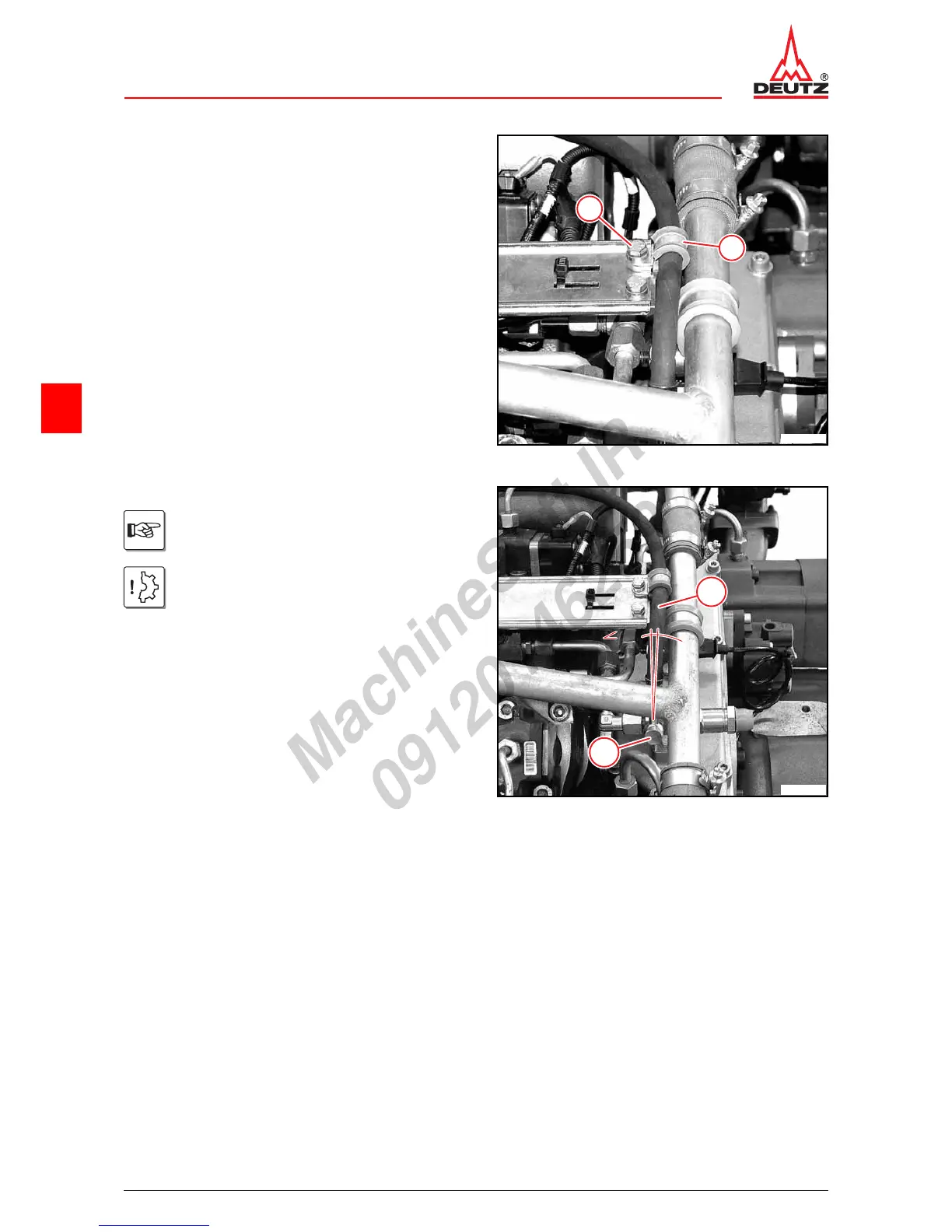

z Position pipe clamp (1).
z Mount washer.
z Tighten screw (2).
 A13 094
2
1
© 45924-0
z Position hose line (1).
z Tighten hollow screw (2).
 A12 090
Observe installation angle dimension X =
10°.
Attention!
Lay the hose pipe free from chafing and
tension.
2
1
1
X
© 45910-0
