TCD 2015
Cooling system
W 09-08-02
© 06/2006 8237-001
2/4
6
z Visually inspect the components.
z Check thermostats.
W 09-08-01
© 40882-0

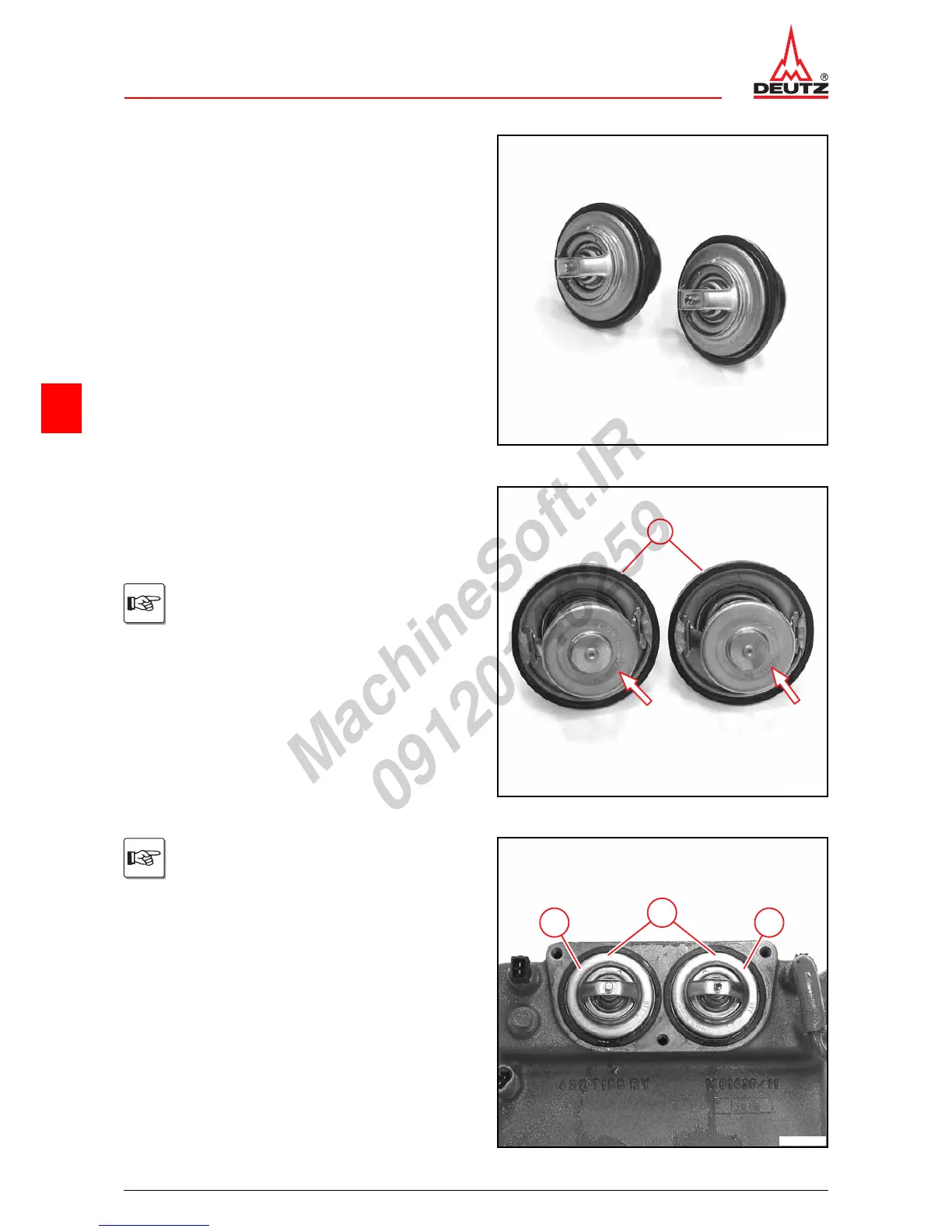

Installing thermostats
z Select thermostats.
z Coat the sealing rings with fitting compound.
z Fit new sealing rings (1).
P09 11
P09 12
Note different opening
temperatures (arrows) of the thermostats.
1
© 40883-0
z Insert thermostat (1).
P09 12
z Insert thermostat (2).
P09 11
Note installation position.
The markings (3) face upwards.
Note thermostat assignment.
3
21
© 40884_2
