Deutz TCD 2015 - Install the Oil Suction Pipe

TCD 2015 Railway
Lube oil system
W 08-04-06
© 06/2006 8229-001
2/2
6

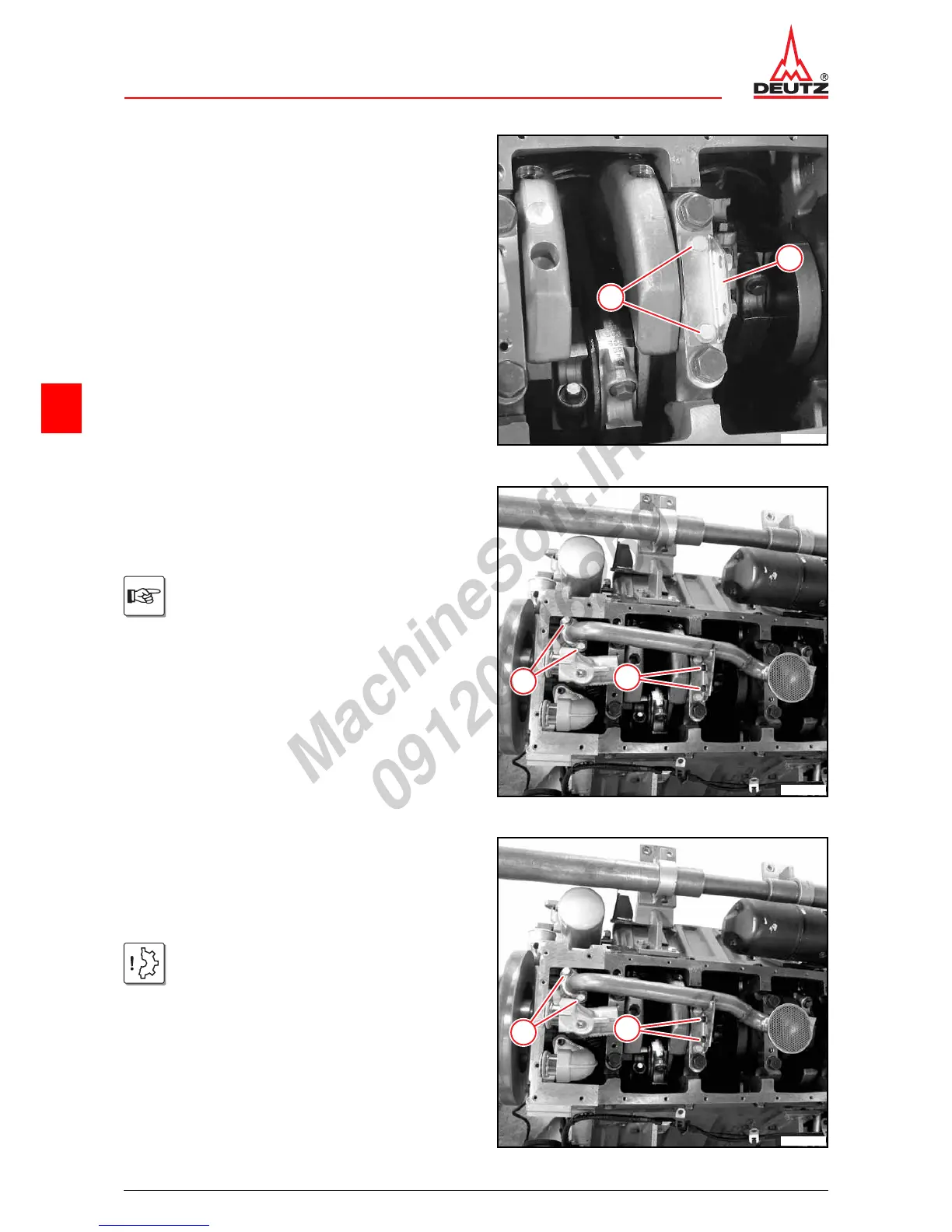

Installing the oil suction pipe
z Mount holder (1).
z Tighten screws (2).
 A08 016
1
2
© 42171-1
z Clean sealing surfaces.
z Mount new gasket.
z Mount oil suction pipe.
z Fasten screws.
Ensure that the installation location is free
from faults.
Note different screw lengths:
M8 x 25 mm (1)
M8 x 20 mm (2)
1
2
© 42170-1
z Tighten screws (1).
 A08 015
z Tighten screws (2).
 A08 016
z Install lubricating oil pan (Railway).
 W 08-04-07
Attention!
Install tension-free!
1
2
© 42170-1
