TCD 2015
Engine control
W 04-05-07
© 06/2006 8189-001
24/32
6

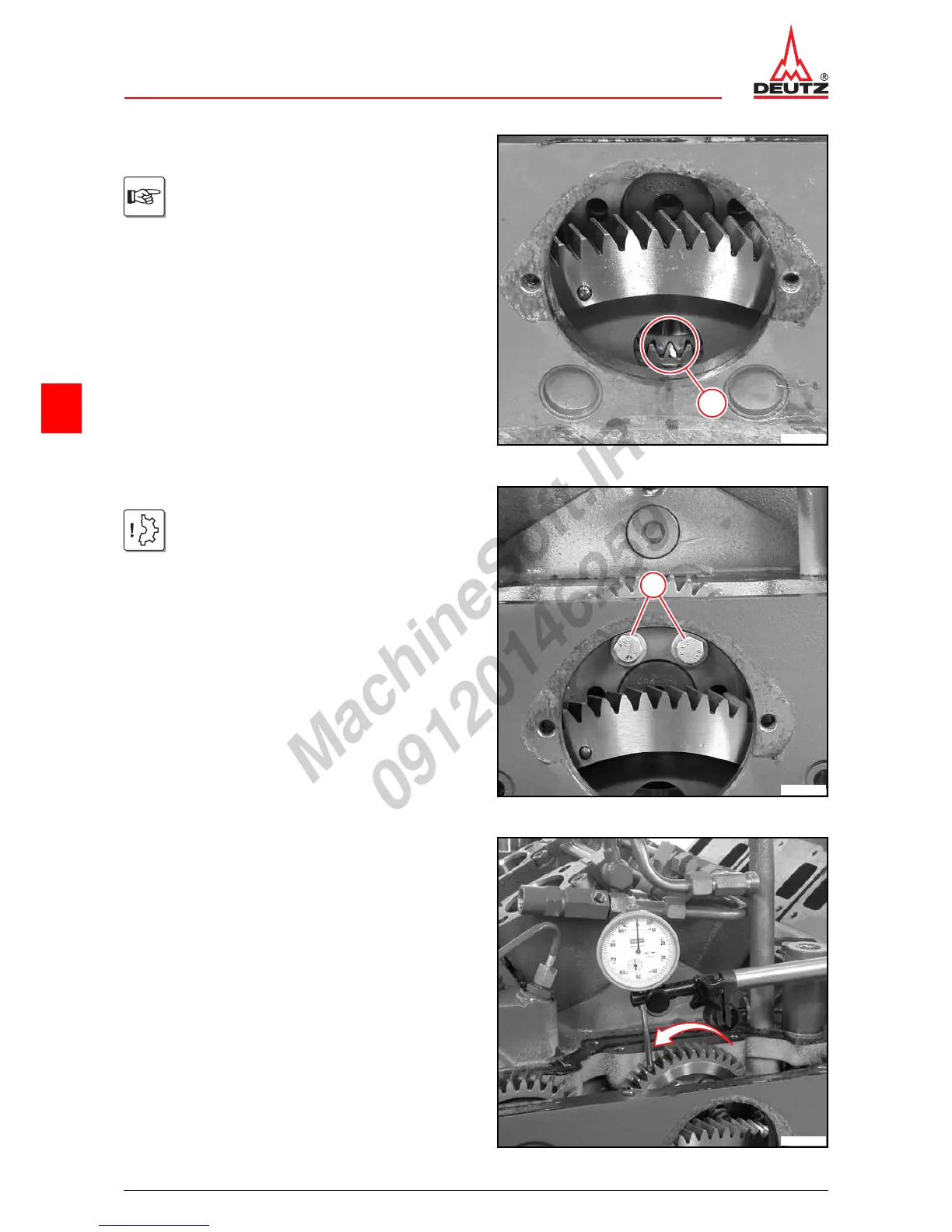

z Insert the injection pump camshaft gear wheel in the
camshaft gear wheel.
The marking on the gear wheel must be
between the markings of the injection
pump camshaft gear wheel (1).
1
© 40447-0
z Tighten screws (1).
Attention!
Make sure no parts fall into the crankcase!
1
© 40498-0
Checking the tooth edge clearance of the
injection pump camshaft gear wheel
z Mount magnetic measuring stand.
z Insert dial gauge.
z Turn gear wheel in direction of arrow until it stops.
z Apply stylus under pre-tension to a tooth flank.
z Adjust dial gauge to "0".
© 40449-0
