© 06/2006 8189-001
25/32
TCD 2015
Engine control
W 04-05-07
6

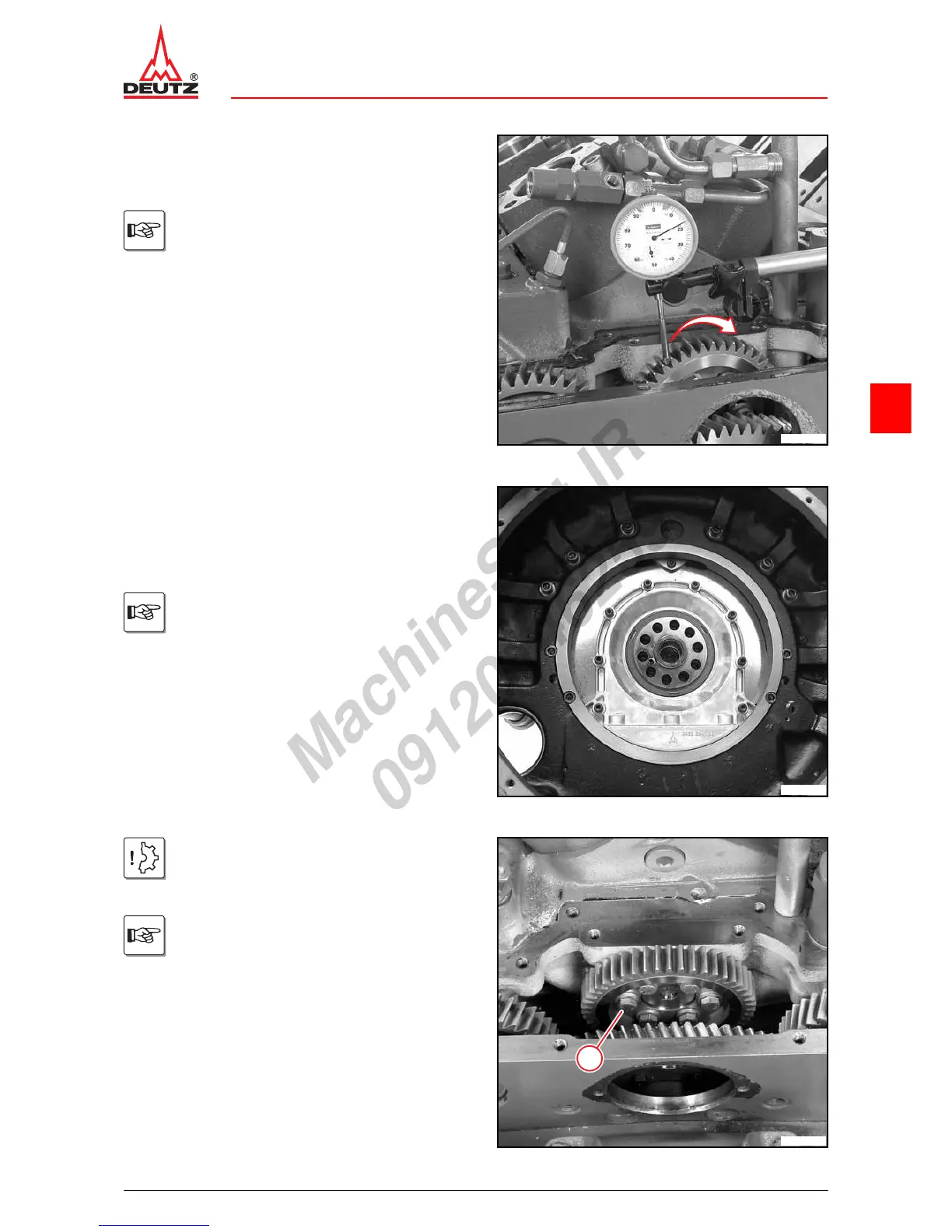

z Turn gear wheel in direction of arrow until it stops.
z Read off measured value.
P07 20
z Remove magnetic measuring stand.
z Remove dial gauge.
Repeat the measuring process on several
tooth flanks.
© 40450-0
z Install crankshaft sealing ring (flywheel side)
W 02-02-02
z Install connection housing.
W 03-09-04
z Attach turning gear.
W 04-06-03
Do not install the turbocharger.
© 40690-0
z Fasten all screws (1).
Attention!
Make sure no parts fall into the crankcase!
Concealed screws can be accessed by
turning the crankshaft with the turning gear.
1
© 40464-0
