© 06/2006 8234-001
5/10
TCD 2015
Lube oil system
W 08-11-10
6

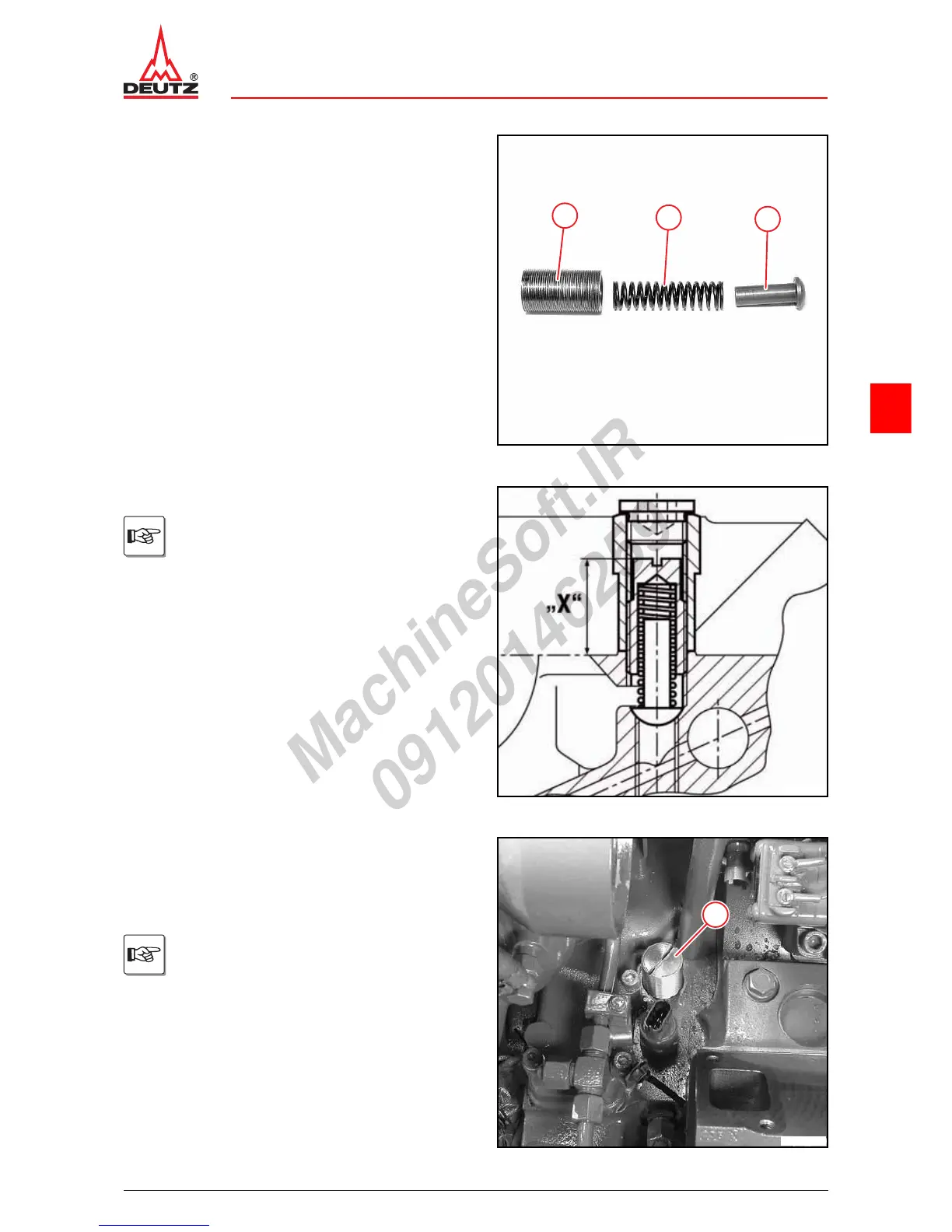

z Visually inspect the components.
– Adjusting bolt (1).
– Compression spring (2)
– Valve plunger (3)
1
2
3
© 42460-1
Installing pressurestat
P08 63
Overhang dimension (X) for basic setting
of adjusting bolt.
If the same oil pressure is to be set again,
the overhang dimension (X) noted before
removal must be reset.
© 35022-2
z Insert valve plunger.
z Insert compression spring.
z Screw in adjusting bolt (1).
P08 63
Note overhang dimension of the adjusting
bolt.
1
© 40868-0
