TCD 2015
Cylinder head
I 01-07-09
© 06/2006 8161-001
4/8
6

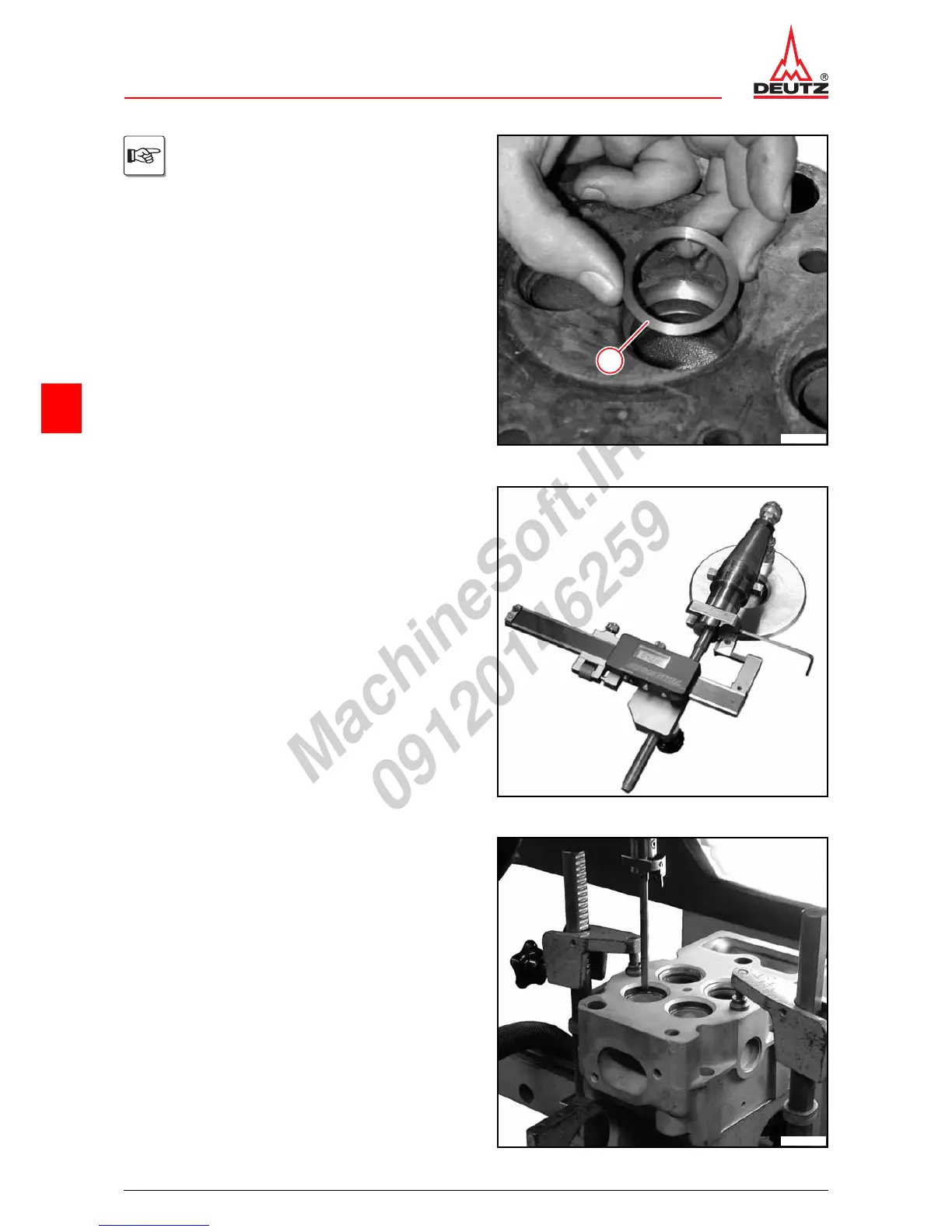

Alternatively, the diameter of the housing
bore can be determined with the aid of a
measuring guide ring (1).
The measuring guide ring can, for
example, be a valve seat insert turned to
half its size in height which is inserted in
the hole.
1
© 36641-1
Prepare housing bore for the valve seat
insert (oversize)
z Set cutting tool.
P01 03
P01 04
© 36620-1
z Clamp cylinder head on cylinder head machining
tool.
z Seal coolant channels.
z Align cylinder head.
© 39745-1
