© 06/2006 8161-001
5/8
TCD 2015
Cylinder head
I 01-07-09
6

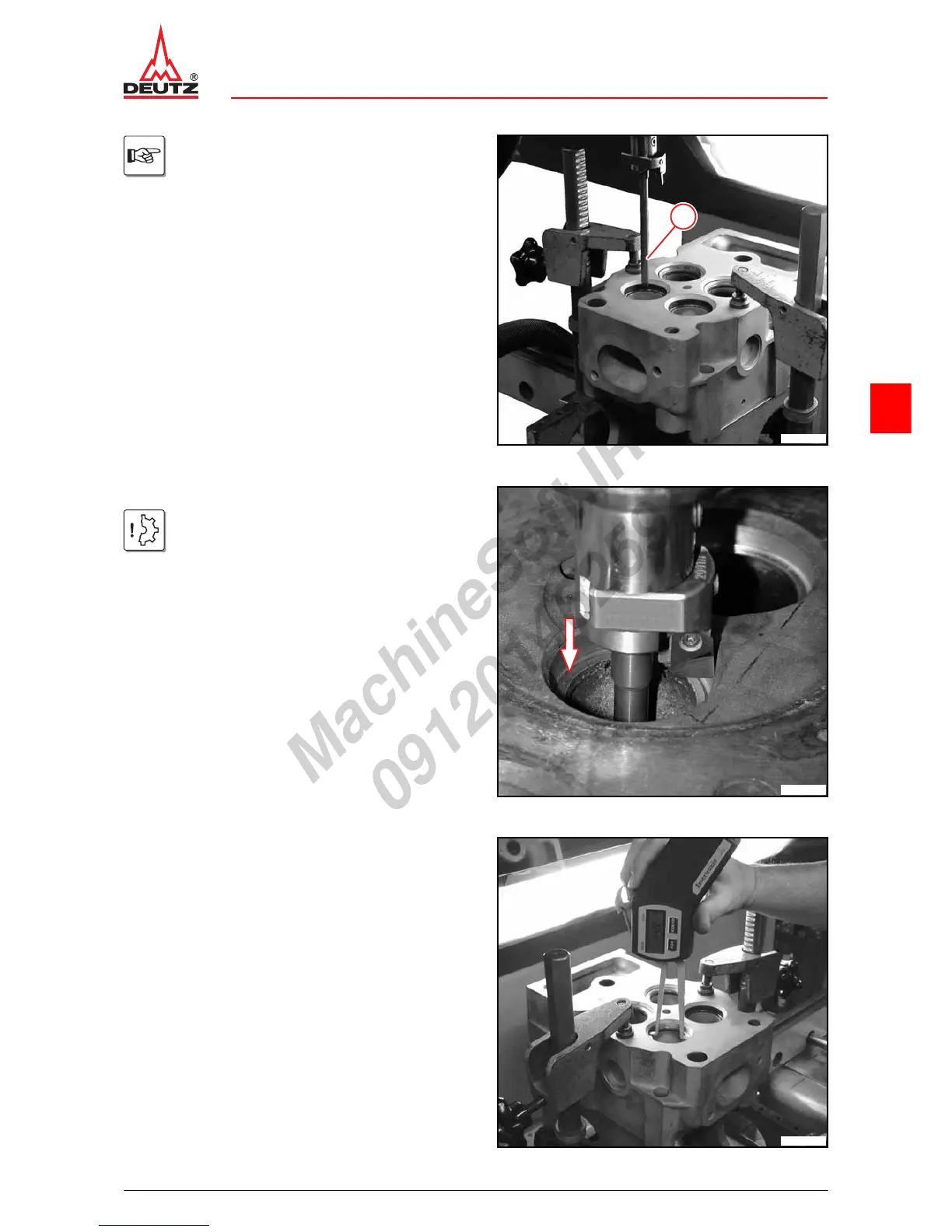

z Align bore unit and mandrin guide (1) with the hous-
ing bore.
The valve guides can have different diame-
ters, a suitable mandrin guide for alignment
with the bore unit must therefore be selec-
ted. The mandrin guide must move easily
in the valve guide without noticeable resi-
stance.
1
© 39746-1
z Bore housing bore to oversize level.
z Remove chips thoroughly.
Attention!
The valve seat insert support (arrow) must
not be machined with the cutting tool.
© 36624-1
z Measure housing bore with internal measuring de-
vice.
P01 03
P01 04
© 39747-1
