Deutz TCD 2015 - Checking Axial Backlash of Crankshaft (Crankshaft Installed)

© 06/2006 8163-001
1/6
TCD 2015
Drive system
W 02-01-04
6
Checking axial backlash of crankshaft
(crankshaft installed)
8190
Commercial available tools:
– Magnetic measuring stand
– Micrometer gauge
– Socket wrench insert, size
24, reinforced
– Socket wrench insert . . . . . . . . . . . 8035
– Rotation angle disc . . . . . . . . . . . . . 8190
Special tools:
– Dial gauge. . . . . . . . . . . . . . . . . . 100400
– W 03-08-01
– W 03-09-01

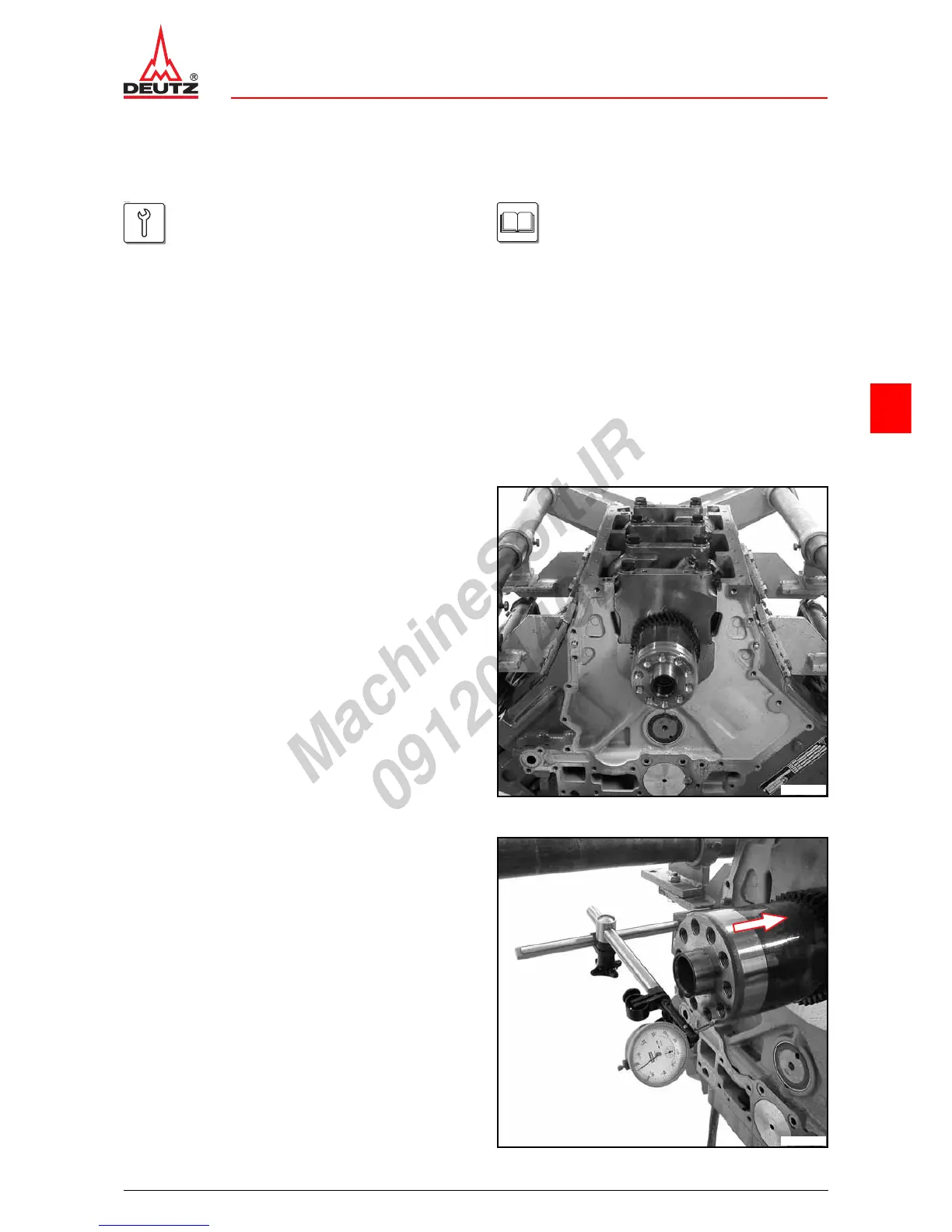

Checking the axial backlash
z Remove genset support.
 W 03-08-01
z Remove rear cover.
 W 03-09-01
© 40479-0
z Mount magnetic measuring stand.
z Insert dial gauge.
z Apply stylus to the crankshaft end with pre-tension.
z Press crankshaft in direction of arrow.
z Turn the dial until the pointer points to "0".
© 40589-0
