TCD 2015
Drive system
W 02-01-04
© 06/2006 8162-001
2/2
6

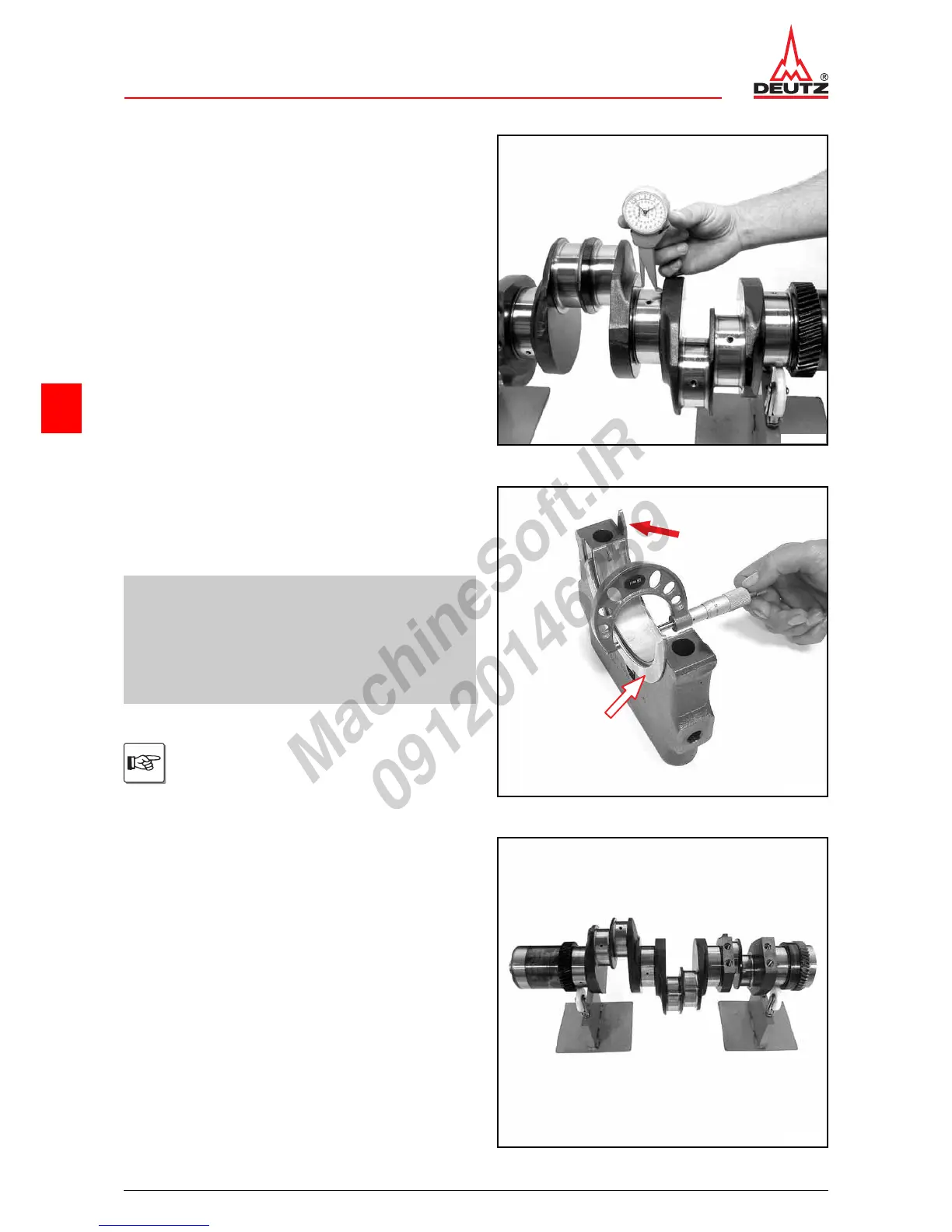

z Measure locating bearing width
z Note measured value, dimension (a).
P02 11
P02 12
P02 13
© 42324-1
z Place thrust ring halves on bearing caps (arrows).
z Measure width with micrometer gauge.
z Note measured value, dimension (b).
z Determine axial backlash.
P02 34
Calculation example
Desired: Axial backlash
Given: -
Measured: (a) = 38.6 mm
(b) = 38.4 mm
Calculation: Axial backlash = dimension (a) - dimension (b)
38.6 mm - 38.4 mm
Result: =0.2mm
With deviating axial backlash:
Set axial backlash by changing the thrust
ring halves.
© 40600-0
z Install crankshaft.
W 02-04-01
© 40485-0
