© 06/2006 8164-001
5/6
TCD 2015
Drive system
W 02-01-07
6

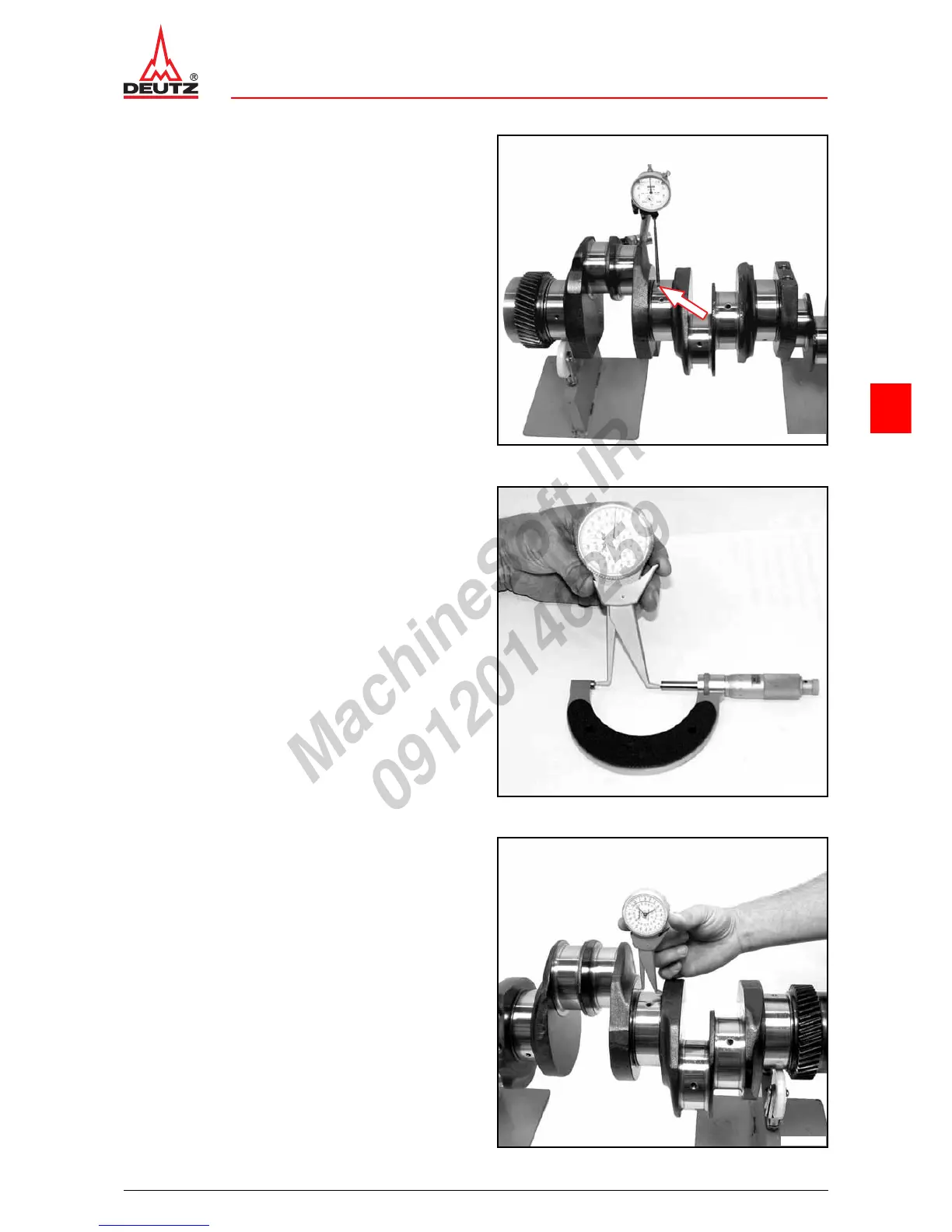

Checking the rotation
z Mount magnetic measuring stand.
z Insert dial gauge.
z Apply stylus to the main bearing pin with pre-tension
(arrow) and adjust dial gauge to "0".
z Turn crankshaft evenly and check rotation.
P02 26
z Remove magnetic measuring stand.
z Remove dial gauge.
© 42325-1
Measuring the fit bearing width
z Set micrometer gauge to 38 mm.
z Push the internal measuring device between the test
surfaces of the micrometer gauge and set to "0".
© 35825-2
z Measure bearing width with internal measuring de-
vice between thelay-on surfaces of the thrust rings.
P02 11
P02 12
P02 13
© 42324-1
