Deutz TCD 2015 - Drive System; Checking Axial Backlash of Crankshaft (Crankshaft Removed)

© 06/2006 8162-001
1/2
TCD 2015
Drive system
W 02-01-04
6
Checking axial backlash of crankshaft
(crankshaft removed)
8190
Commercial available tools:
– Micrometer gauge
– Internal measuring device
– W 02-04-01

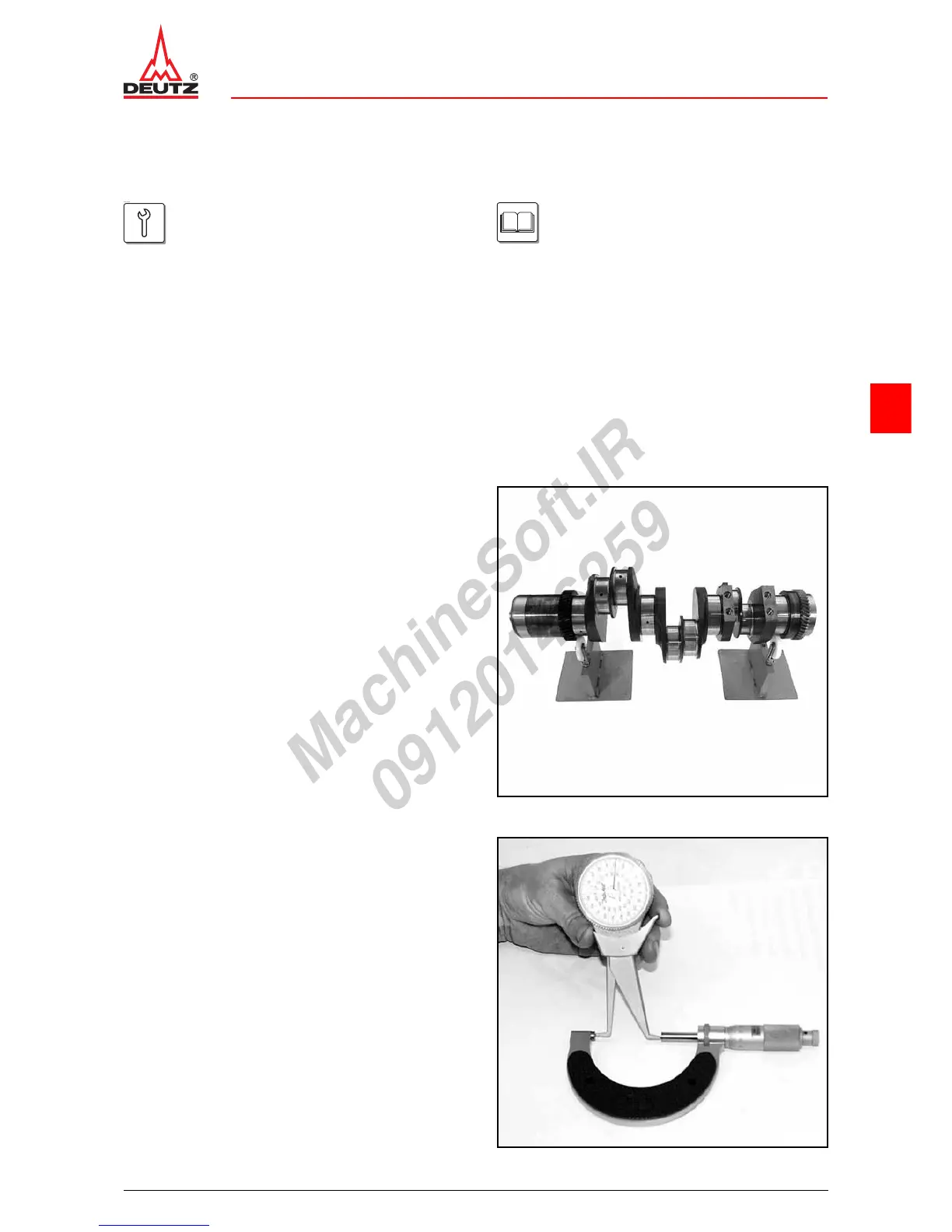

Checking the axial backlash
z Remove crankshaft.
 W 02-04-01
© 40485-0
z Set micrometer gauge to 38 mm.
z Push the internal measuring device between the test
surfaces of the micrometer gauge and set to "0".
© 35825-2
