Removing and installing charge air pipe
(B-bank)
Commercial available tools
Special tools:
– Special wrench . . . . . . . . . . . . . . 110510
– W 06-02-05
– W 07-03-01 . . . . . . . . . . . . (B-bank)
Removing charge air pipe
z Remove connecting pipe.
 W 06-02-05
z Removing high pressure pipes (B-bank).
 W 07-03-01
© 40552-0

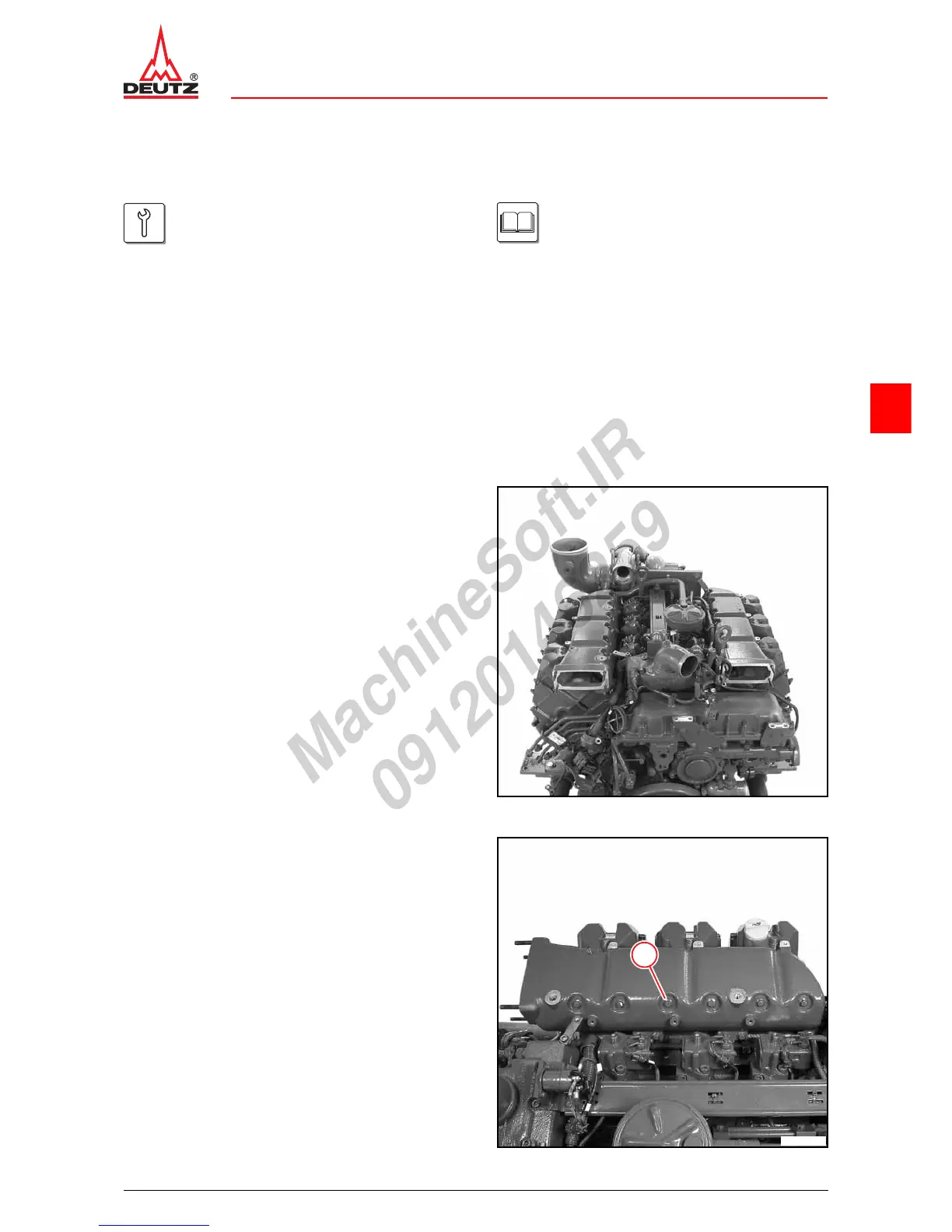

z Unscrew all screws (1).
