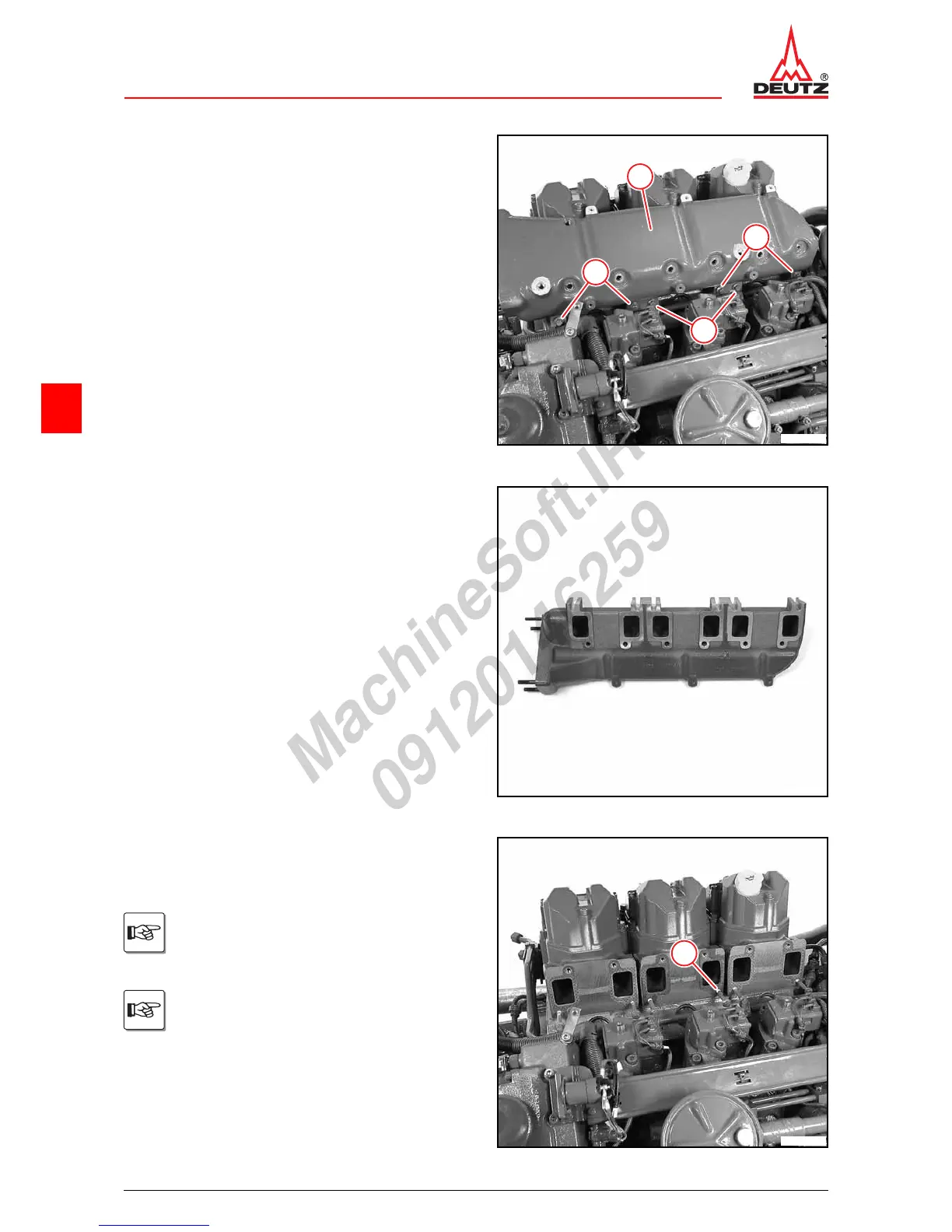

TCD 2015
Exhaust system/Charging
W 06-07-03
© 06/2006 8207-001
2/4
6
z Unscrew screws (1) with special wrench.
z Unscrew screws (2).
z Remove charge air pipe (3).
z Remove seals.
1
3
2
1
© 40570-0
z Visually inspect the components.
© 40571-0
Installing charge air pipe
z Clean sealing surfaces.
z Mount new gaskets.
z Turn in all screws (1) a few turns.
Note installation position.
Screw length:
M8 x 65 mm
1
© 40572-0
